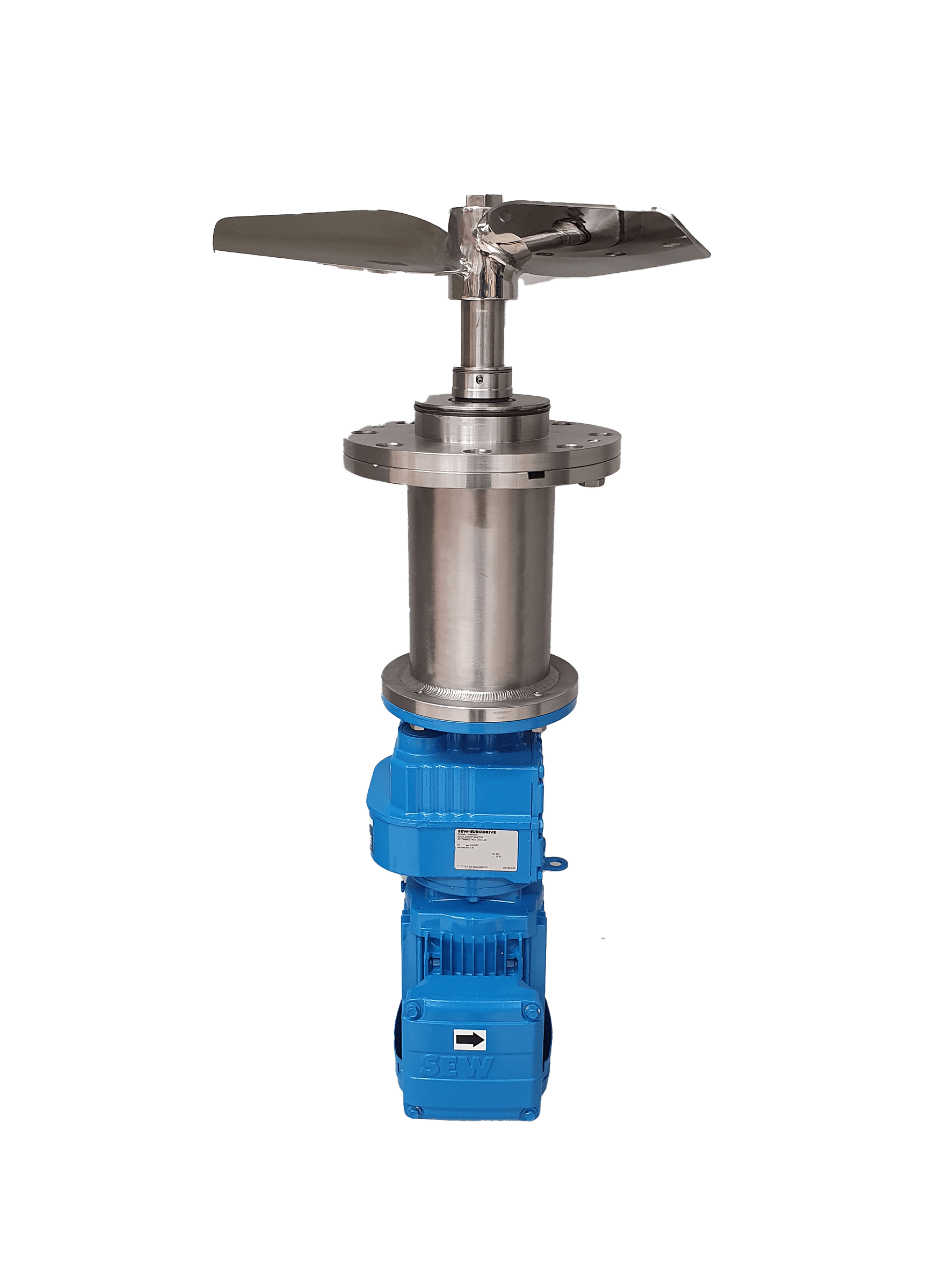

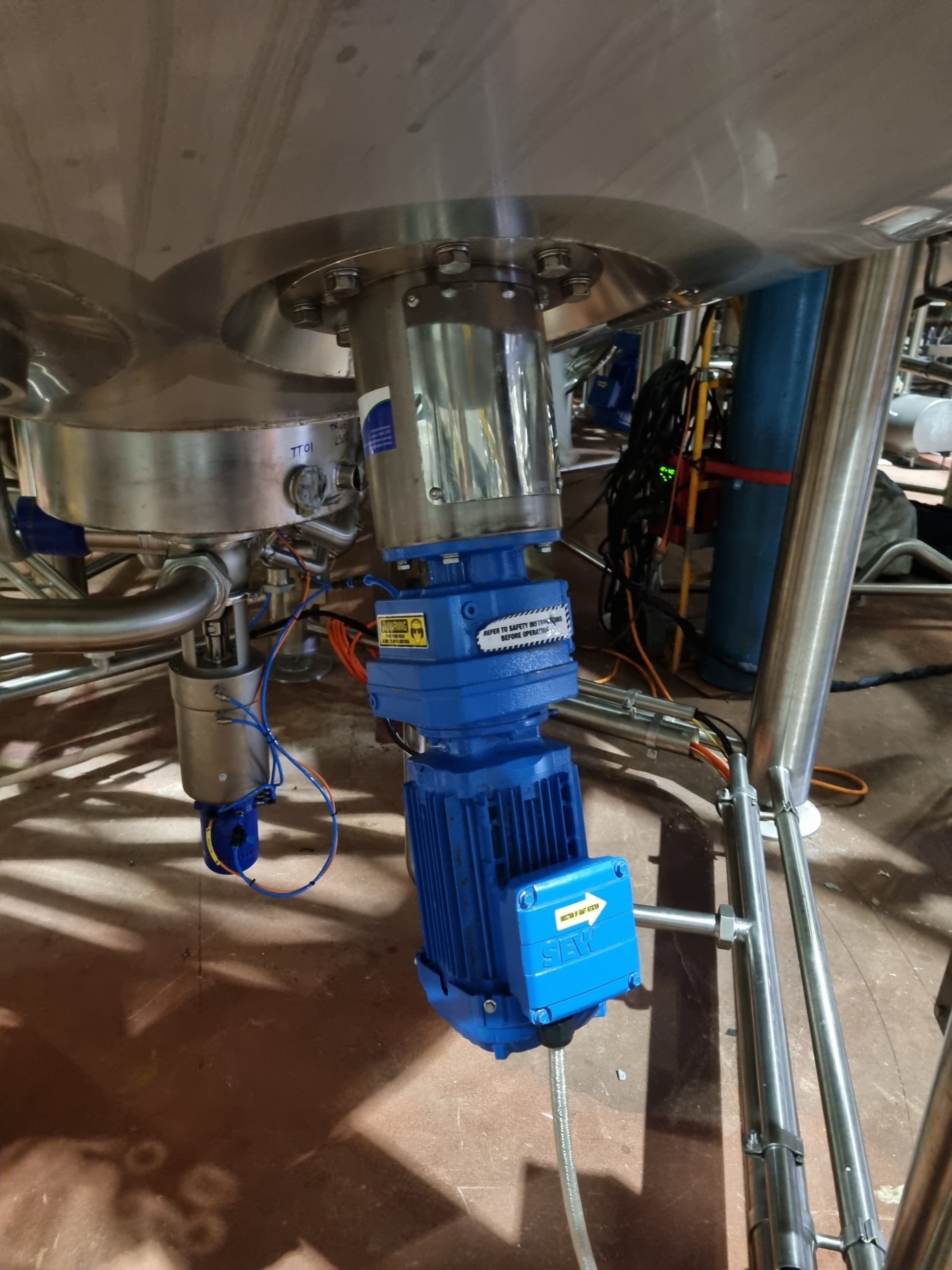

.png "Base Entry Mixer on Tank")
Base Entry Agitator Mixers
Base entry agitators and tank mixers for sale in Australia
FluidPro base entry agitator mixers combine over 40 years of fluid mixing technology. Designed specifically with the high efficiency FluidFoil impellors, FluidPro base entry mixers provide the most productive method of converting energy into fluid motion in large storage tanks and process vessels. Series BE-10 base entry agitators are ideally suited for fluid of low to medium viscosity.Designed to move liquid away from the tank to create a uniform turnover of tank contents. Fluidfoil Series AF70 high efficiency axial flow impellors provide maximum pumping and thrust for maximum agitation, resulting improved production times.
This efficient mixing technology is ideal for reducing buildup of sediment at the bottom of your tank, as it pushes contents upwards for a more consistent mixture. The base entry also allows this mixer to be attached to tanks with little distance between the tank itself and the roof of your plant or factory, where a top entry mixer cannot be used or will not fit. As it is easier to access, a base entry mixer, also known as a bottom entry mixer, also allows for more efficient Cleaning In Place, and because of its position at the bottom of the tank, it allows you to mix even when your vessel is draining or only partially full, without requiring a long shaft length as with top entry mixers.
Applications
FluidPro BE-10 High Efficiency Base Entry Mixers are used in many applications and key industries, including:
- Blending
- Solids in suspension
- Heat transfer (optimises refrigeration efficiency)
- Mass transfer
- Wine industry
- Chemical mixing
- Cosmetics industry
- Water treatment & wastewater pH correction
- Food & beverage processing
- Liquid fertiliser blending
- Product resuspension
- Vessel cleaning
FluidPro BE-10 Series Base Entry Mixers
Inserted into your tank from the base, FluidPro BE-10 base entry agitators are easy to clean and low maintenance. Designed and manufactured in Australia, this mixer provides a robust base entry mixer solution.
- Housing constructed of stainless steel
- Specialised range of FluidPro tank mounting flanges available
- Contoured compensation flanges fabricated specially to suit tank diameters
- FluidFoil Series AF70 high efficiency axial flow impellers
- Mechanical seals selected specifically for each individual application
- Clean design solution with all whetted parts from 316 stainless as standard
- Hygienic design with polished stainless steel parts
- Improved safety motor for flammable goods environments
FluidPro Base Entry Mixers are available in Gear Driven (Low Speed), Direct Driven (High Speed) and Explosion proof motors in 240V or 415V. Motor power (kW) and speed (rpm) are selected suited to your mixing needs.
Options
- Available drives from 0.37-11kW
- Highl efficient axial flow Fluidfoil impeller
- Keyed impellor hubs for secure shaft attachment
- IP56 standard motor protection
- Mounting Flanges
- Polished shaft
- Polished Propellers
- Available in various length shafts
- Available in various style propellers
- Water flush seal
Specifications
- Various tank mounting plate designs
- Mechanical seals suit applications
- Hygienic designs for pharmaceutical installations
- Improved safety motor for flammable goods environments
- FluidFoil AF70 high efficiency axial flow impellers
- Whetted parts 316 stainless steel

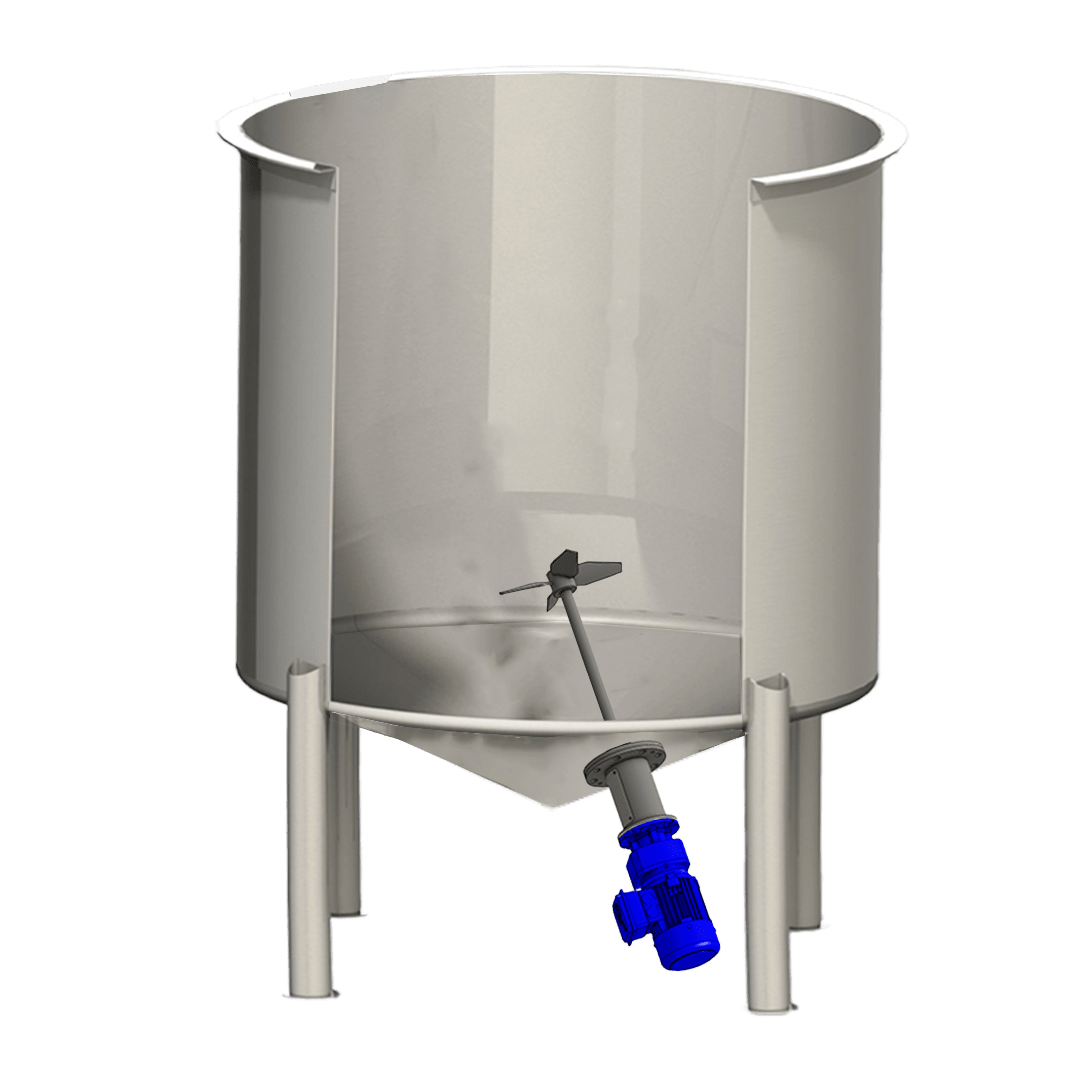

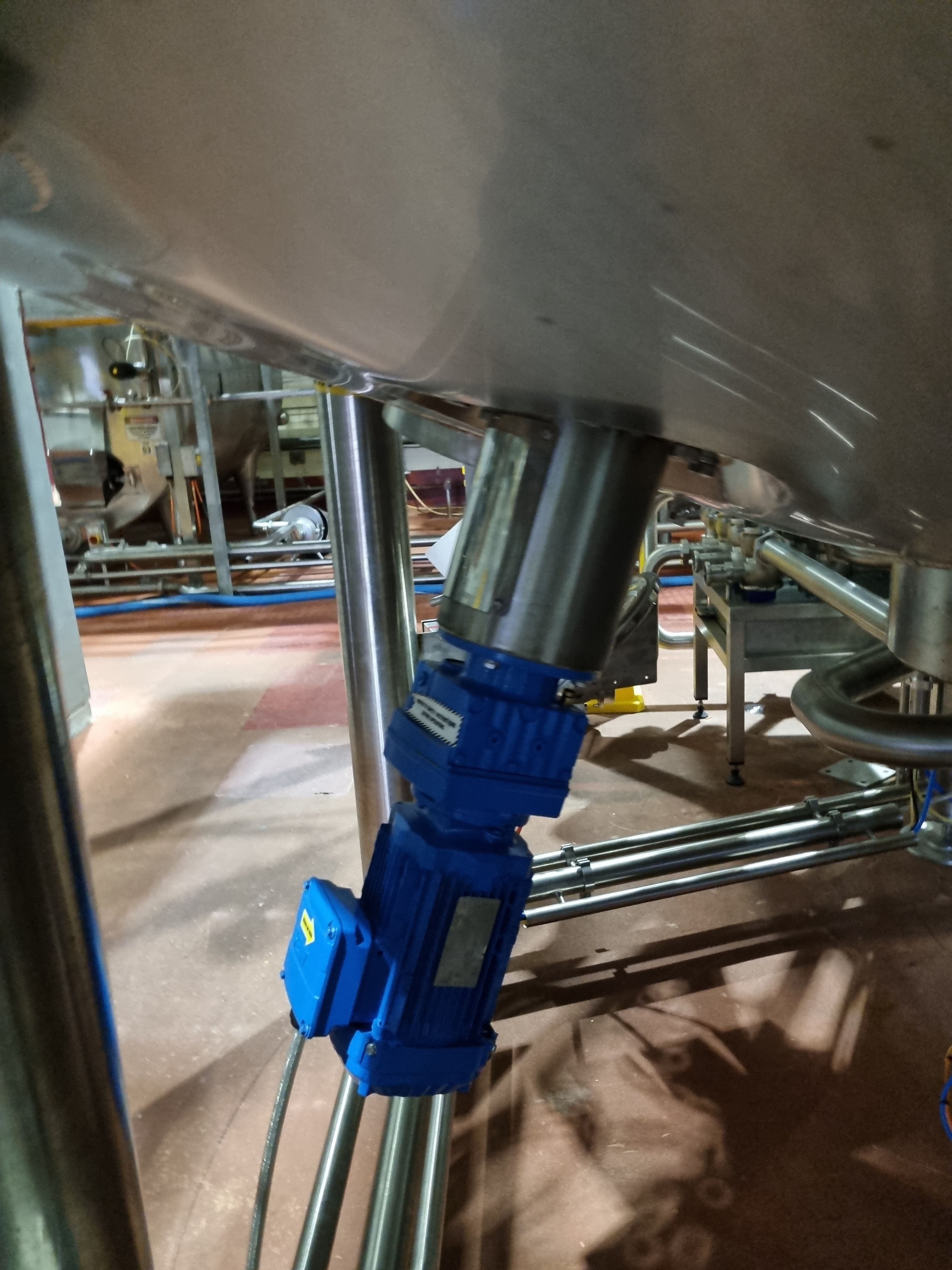

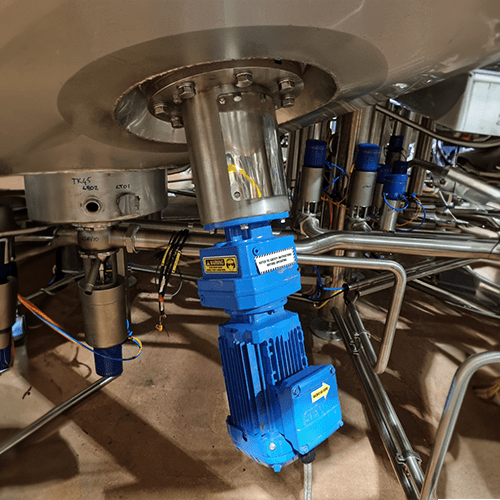

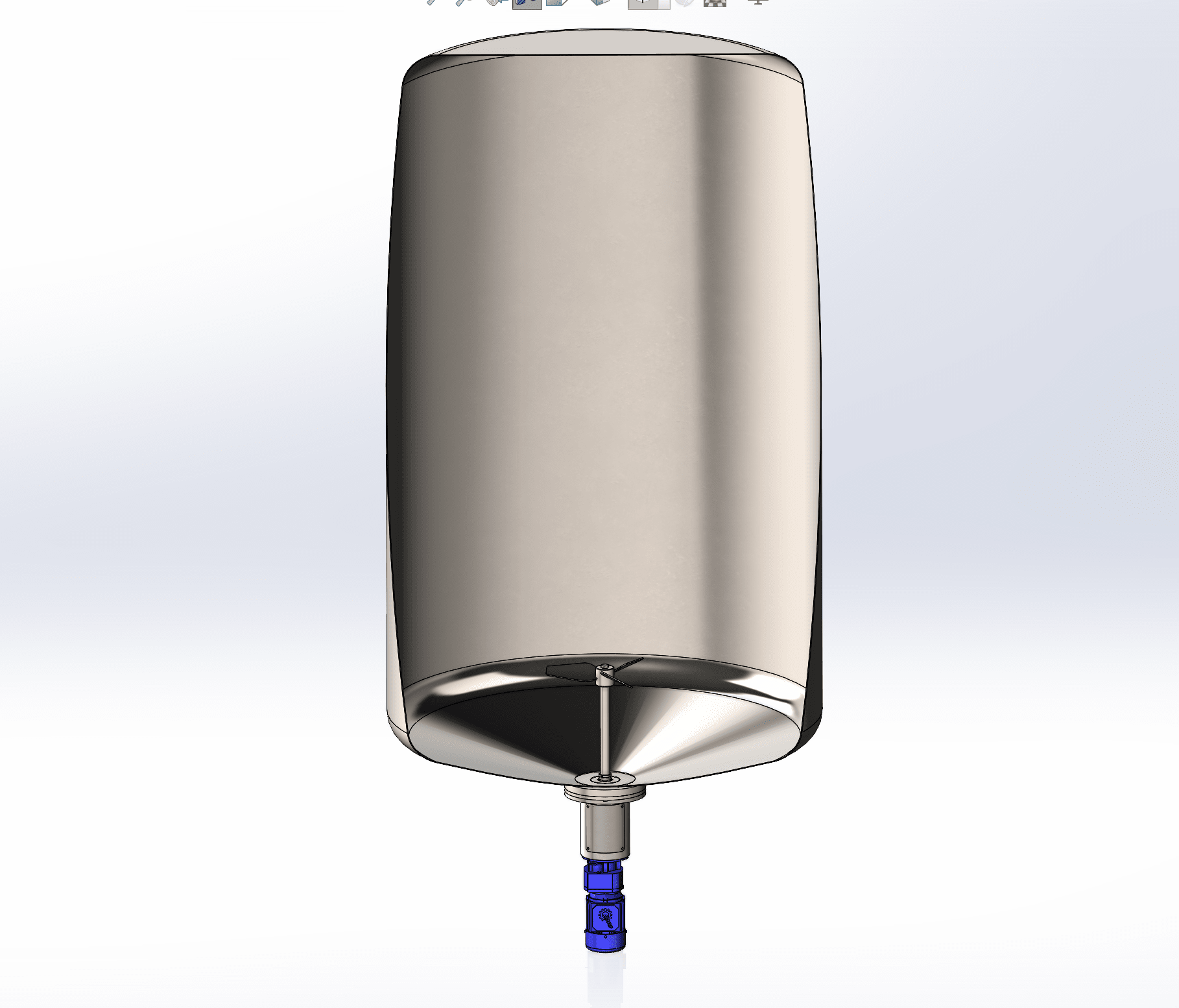

Base Entry Mixers Gallery
BE-10 base entry mixers provide a convenient tank entry mechanism, easy Cleaning in Place (CIP) and a variety of benefits. Click to enlarge images.

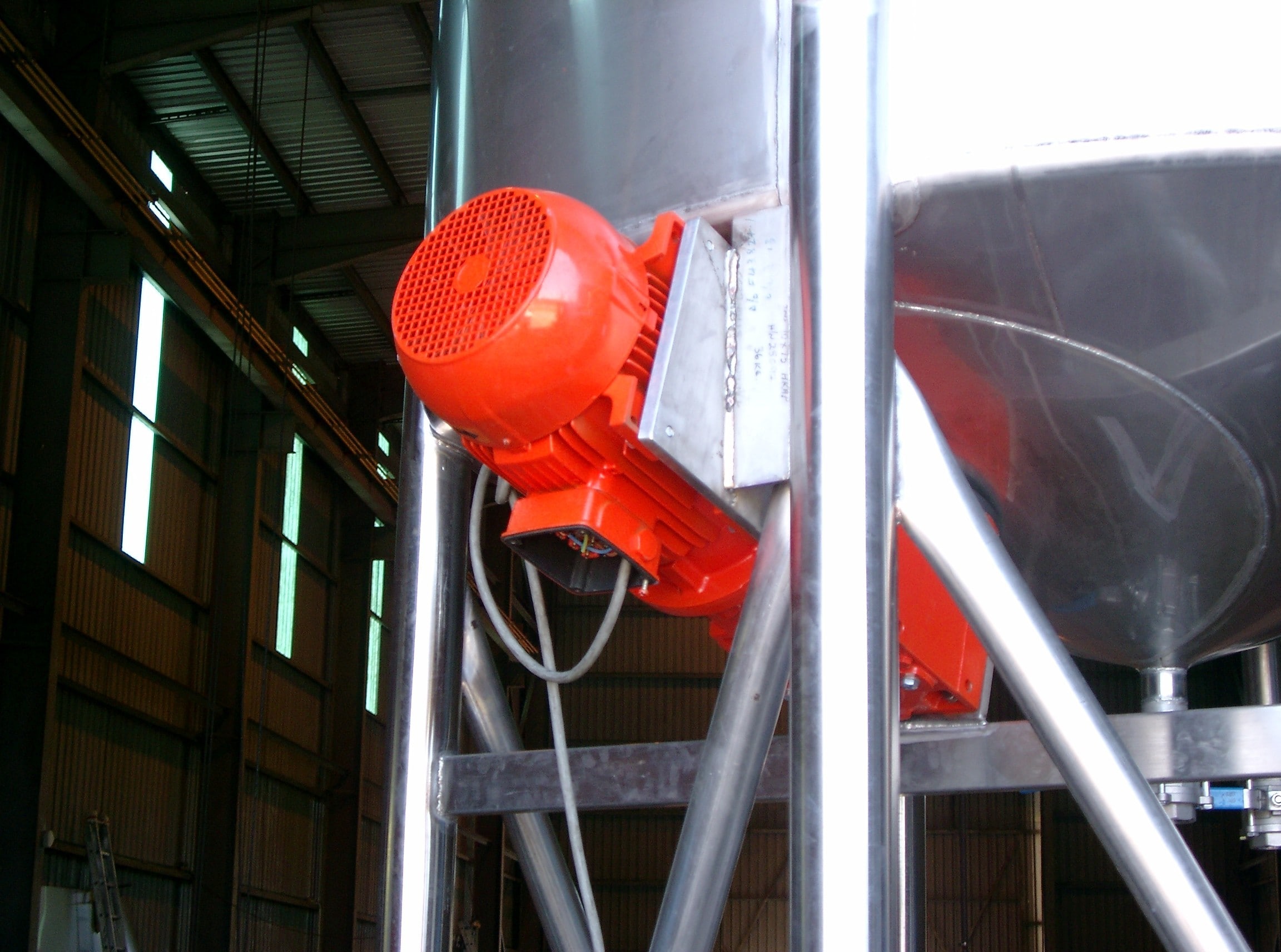

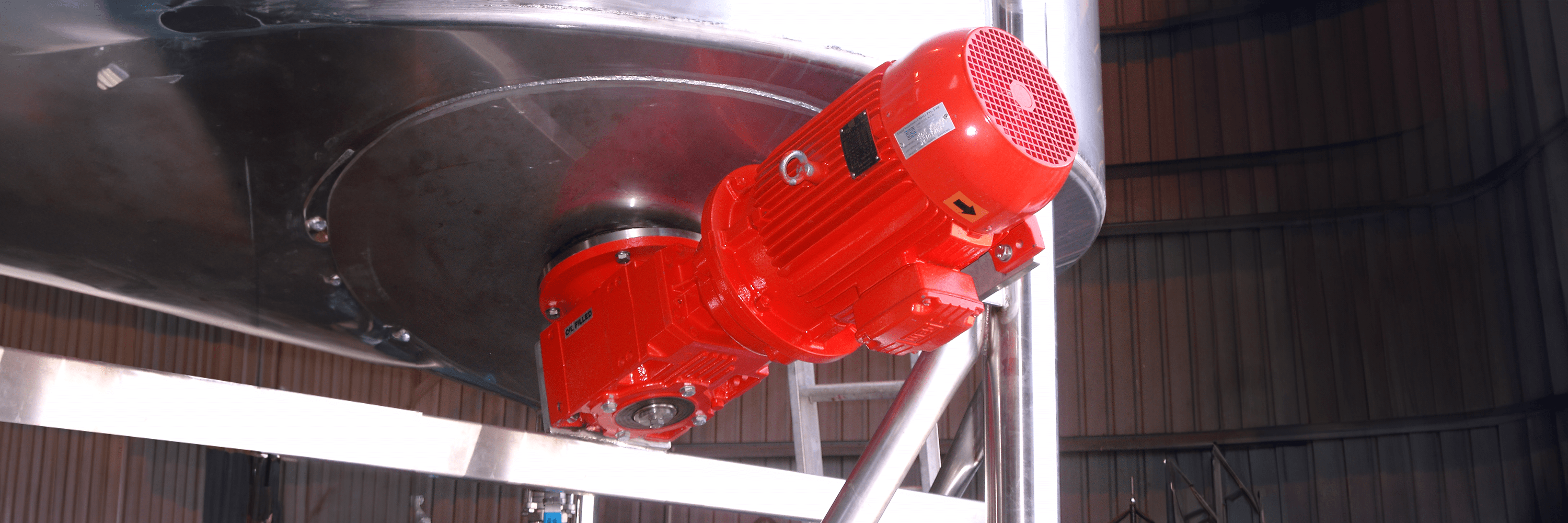

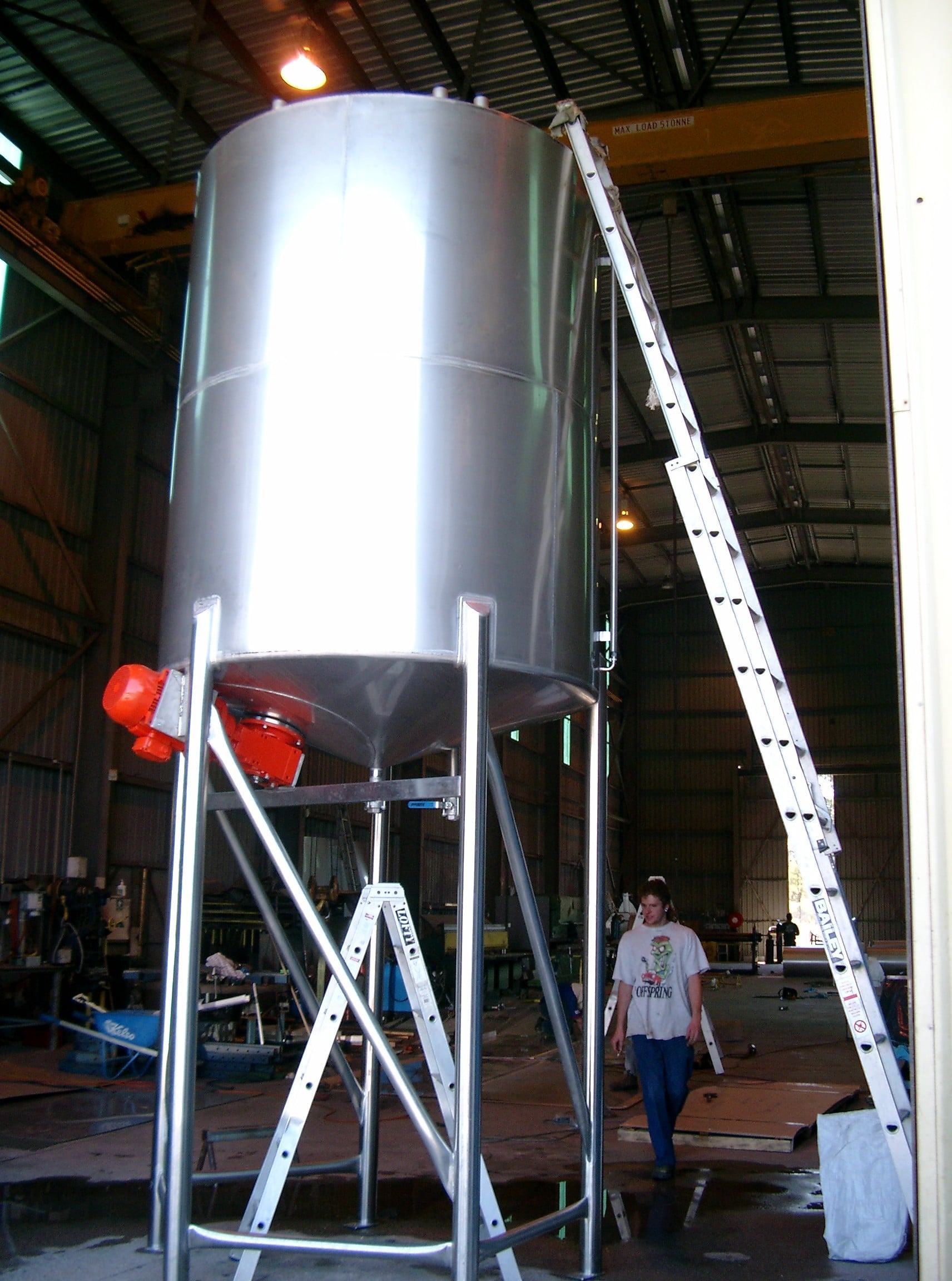

.jpg "Red base entry mixer")

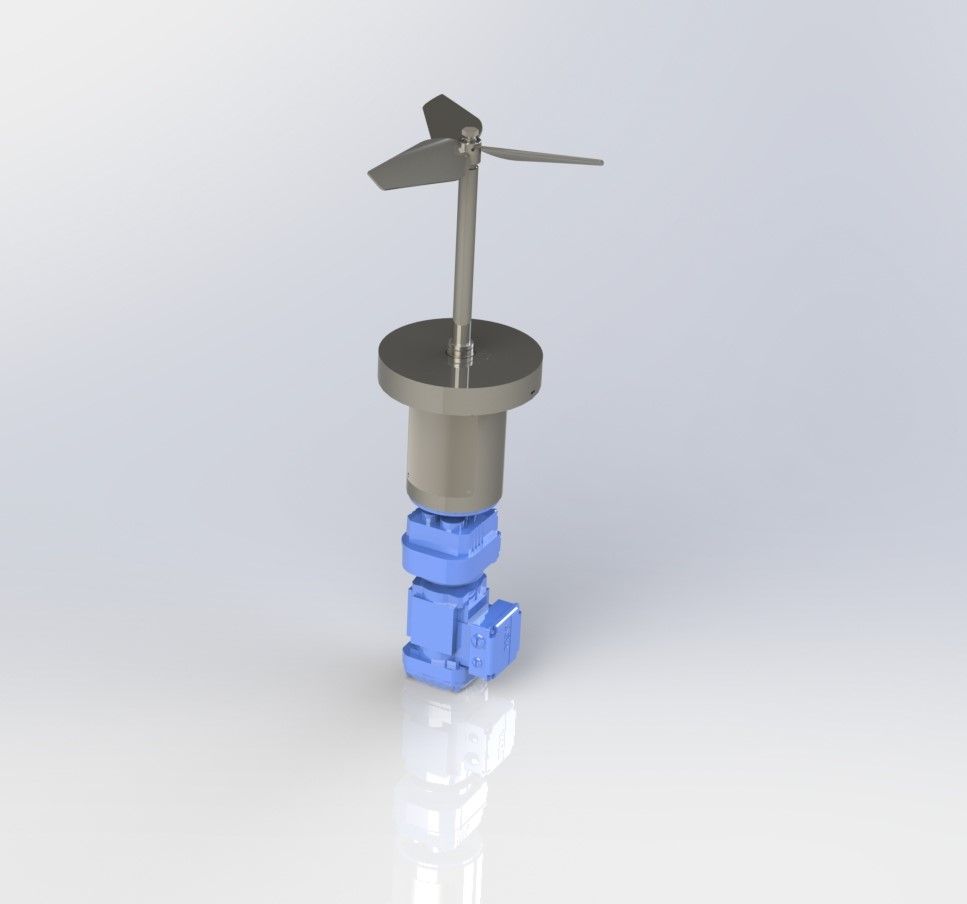

.JPG "Base Entry Render")
