Clamp On and Post Mount Mixers

Portable, cost-effective clamp on agitator mixers, made in Australia
The FluidPro PS-10 Clamp-On Series are designed for many and varied applications such as blending liquid ingredients, maintain solids in suspension or disperse powders into liquids, all from the one versatile mixer. Clamp-on series Agitators can be fitted quickly and effectively to most open top tanks. You can turn a basic storage facility into a cost effective, efficient mixing vessel.
The heavy duty FluidPro PS-10 Clamp system allows you to use one vessel for multiple duties. This mounting clamp easily adjusts to allow shaft entry angle variation from 90º vertical and 360º horizontal for optimum mixing positioning. They feature nosecone with pressed-in bearing form maximum shaft support, combine this with larger shaft diameters for a robust and reliable installation. A portable option, clamp on mixers allow you to use one mixer for a variety of batches or applications, moving it quickly from tank to tank and saving on equipment costs. With just one vessel, you can achieve multiple operations needs. With an adjustable clamp, the PS-10 Clamp On Mixer provides optimal positioning within your tank or container for consistent, even mixing and more efficient blending and processing with reduced energy consumption. Easily attached to and detached from your tank, clamp mount mixers are low maintenance and can be cleaned efficiently to save downtime and optimise your processes. PS-10 Clamp Mount Mixers are designed and manufactured in Australia by FluidPro, industry leaders in IBC mixing equipment. Using custom agitator design and selection software, FluidPro can customise your clamp on mixer to suit your exact operational requirements.
Applications
The FluidPro PS-10 Clamp-On Series are used in many applications, proving cost effective solutions in liquid blending, chemical mixing, cosmetics industry, water treatment, food & beverage, liquid fertiliser blending, wastewater PH correction, product re suspension and achieving homogenous uniform quality product mixtures.
  • Water treatment
  • Wastewater pH correction
  • Liquid blending
  • Chemical mixing
  • Wine processing
  • Food and beverage processing
  • Cosmetics manufacturing
  • Product resuspension
  • Homogenising
  • Solid suspension mixing
REQUEST A QUOTE

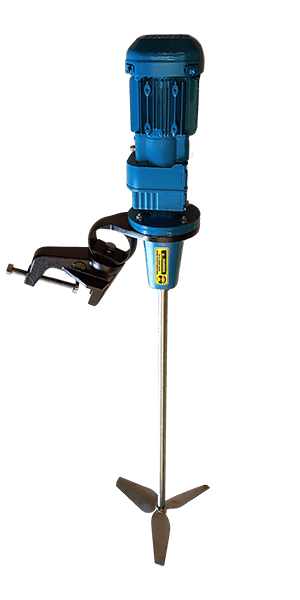

FluidPro PS-10 Series Clamp Mount Mixers
The ultimate portable mixing solution, FluidPro clamp on mixers are a convenient, cost effective way of producing uniform, homogenous mixtures.
Features
Completely portable, durable and robust the FluidPro PS-10 Clamp mount mixer includes the following features to ensure consistent dependable product quality to the end user. Lightweight aluminium clamp assembly, Australian designed and manufactured, heavy duty Nosecone assembly providing shaft support bearing, integrated quick release shaft coupling.
  • Lightweight and portable
  • Nosecone pressed-in bearing for maximum shaft support
  • Can be combined with larger shaft diameters for easier installation
  • Heavy duty cast aluminium clamp for securing to open top tanks
  • Adjustable clamp mounting
  • Integrated quick release shaft coupling
  • Highly efficient axial flow impellers
request product brochure
Request Instruction manual
FluidPro Clamp On Mixers are available in gear driven (low speed), direct driven (high speed), and explosion proof motors in 240V or 415V, ranging from 0.37kW to 2.2kW to suit your mixing needs.
Options
  • 415V 3 phase electric motor
  • 240V single phase electric motor
  • Pneumatic motor
  • Flameproof motor
  • Variable Speed Drive IP66 240V or 415V
  • Lead and plug (10 amp/15 amp)
  • Variable shaft length
  • Axial flow impellers
  • Marine or folding impellers
REQUEST A QUOTE
Specifications
  • Total unit weight: 22kg
  • Shaft diameter: Ø25.4mm
  • Suitable for product viscosity up to 25000cPs
  • All whetted parts made from 316 stainless steel
  • Cast aluminium mixer nosecone with shaft support bearing
  • Heavy duty clamp assembly
  • Quick release shaft coupling
  • Positioned off-centre, angled and adjustable
dOWNLOAD SPEC SHEET
FluidPro PS-10 Series Post Mount Mixers
If you require a portable mixer, but are using a polymer tank or a tank with a small opening, FluidPro's Post Mount Mixers may be more suitable for your needs. The FluidPro ST-10 Post Mount Series are designed for many and varied applications such as blending liquid ingredients, maintain solids in suspension or disperse powders into liquids, all from the one versatile mixer. Post Mount Mixers can be fitted quickly and effectively to most open top tanks. You can turn a basic storage facility into a cost effective, efficient mixing vessel.
Applications: The FluidPro ST-10 Post Mount Mixer Series are used in many applications, proving cost effective solutions in liquid blending, chemical mixing, cosmetics industry, water treatment, food & beverage, liquid fertiliser blending, wastewater PH correction, product re suspension and achieving homogenous uniform quality product mixtures.
Features: Cost effective, Galvanised, powder coated or stainless steel stand, simple installation , height adjustable, versatile.
FluidPro Post Mount Mixers are available in:Gear Driven (Low Speed), Direct Driven (High Speed) and Explosion proof motors in 240V or 415V ranging from 0.37kw to 2.2kW to suit your mixing needs.
  • Options:
  • Variable Speed Drive IP66 (240V/415V)
  • Galvanised Pipe stand Mount
  • 3 phase (415V)
  • Single phase (240V)
  • Impellers available in many styles and sizes to suit your mixing needs
  • Positioning - Off centre vertical, off centre, Angled multi adjustable
  • Specifications:
  • All wetted parts are 316 Stainless Steel
  • AF30 Fluidfoil blades specially designed for efficiency
  • Heavy duty mixer Pedestal with shaft support bearing
  • IP56 Standard Motor Protection
  • Nose cone assembly comes with Shaft Support Bearing Coupling and Lip seal
  • Adjustable pipe stand

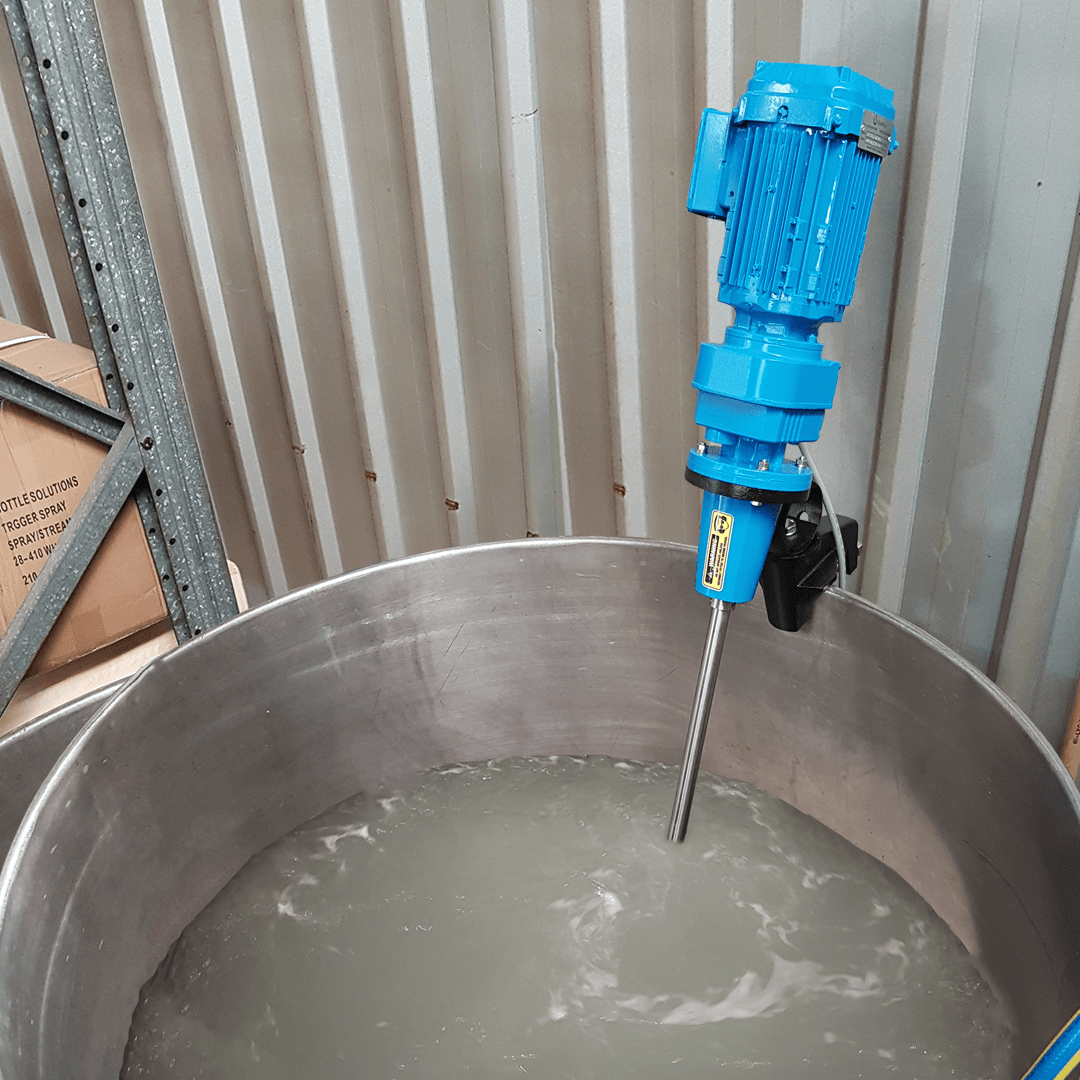

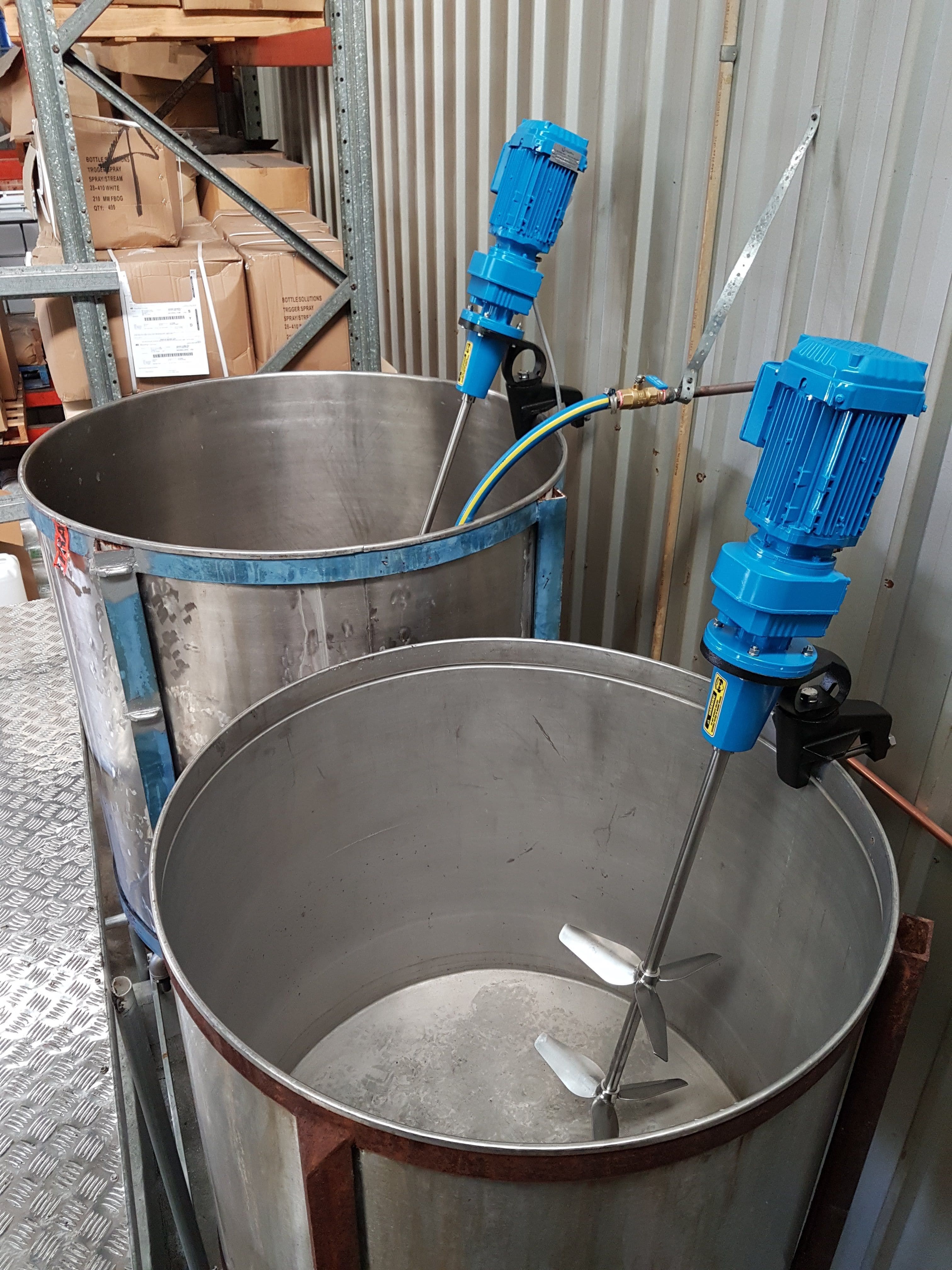

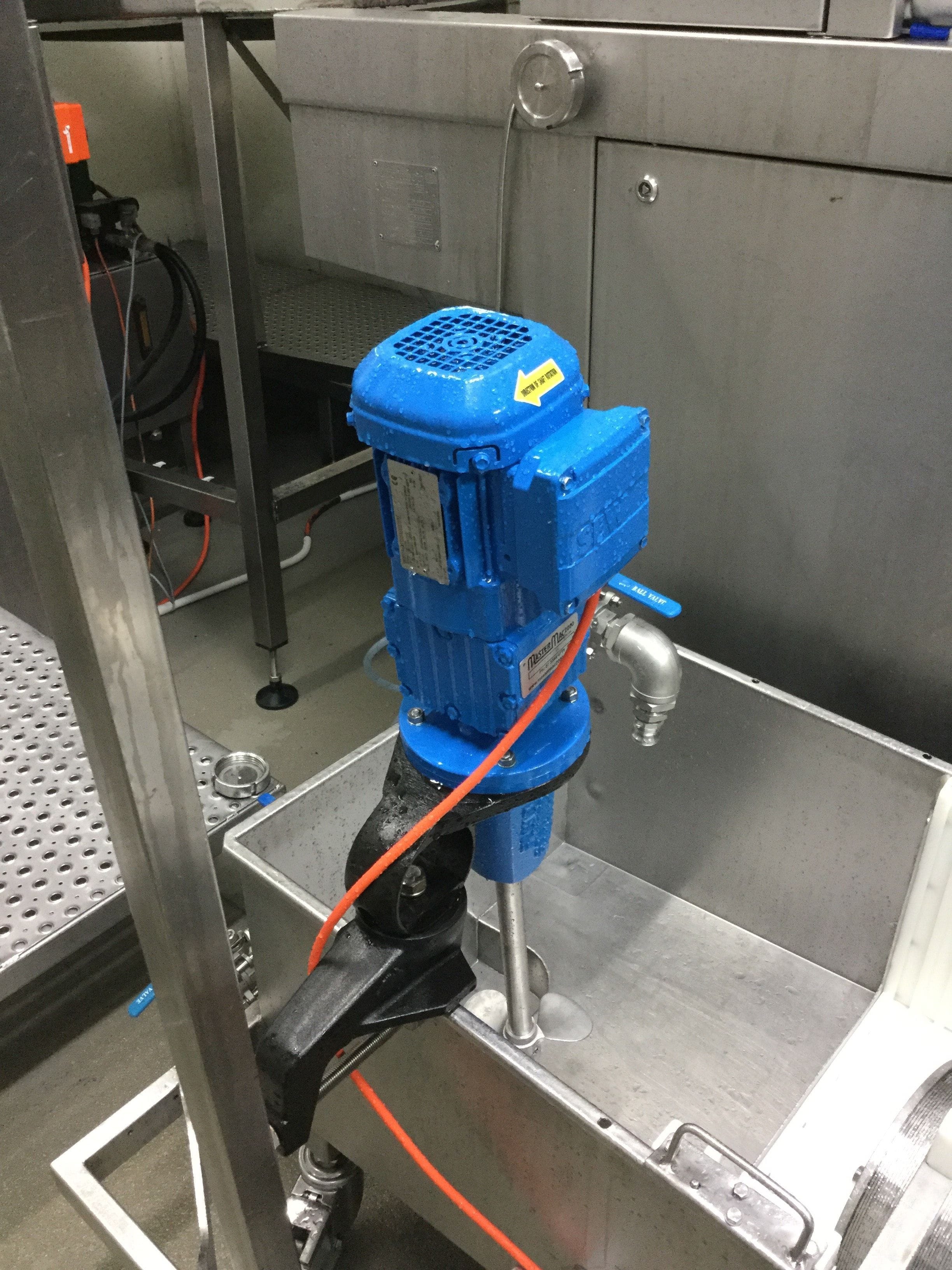

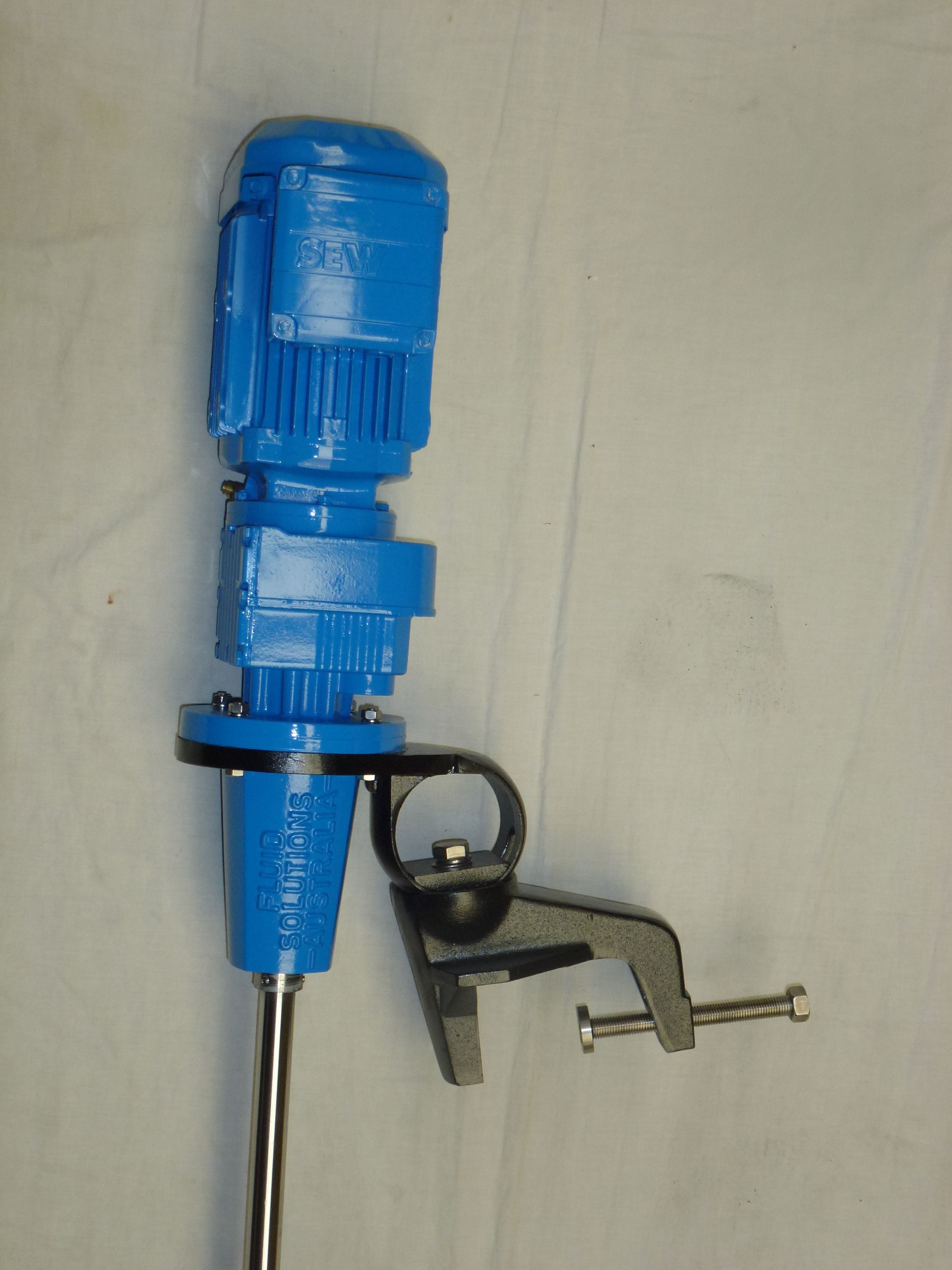

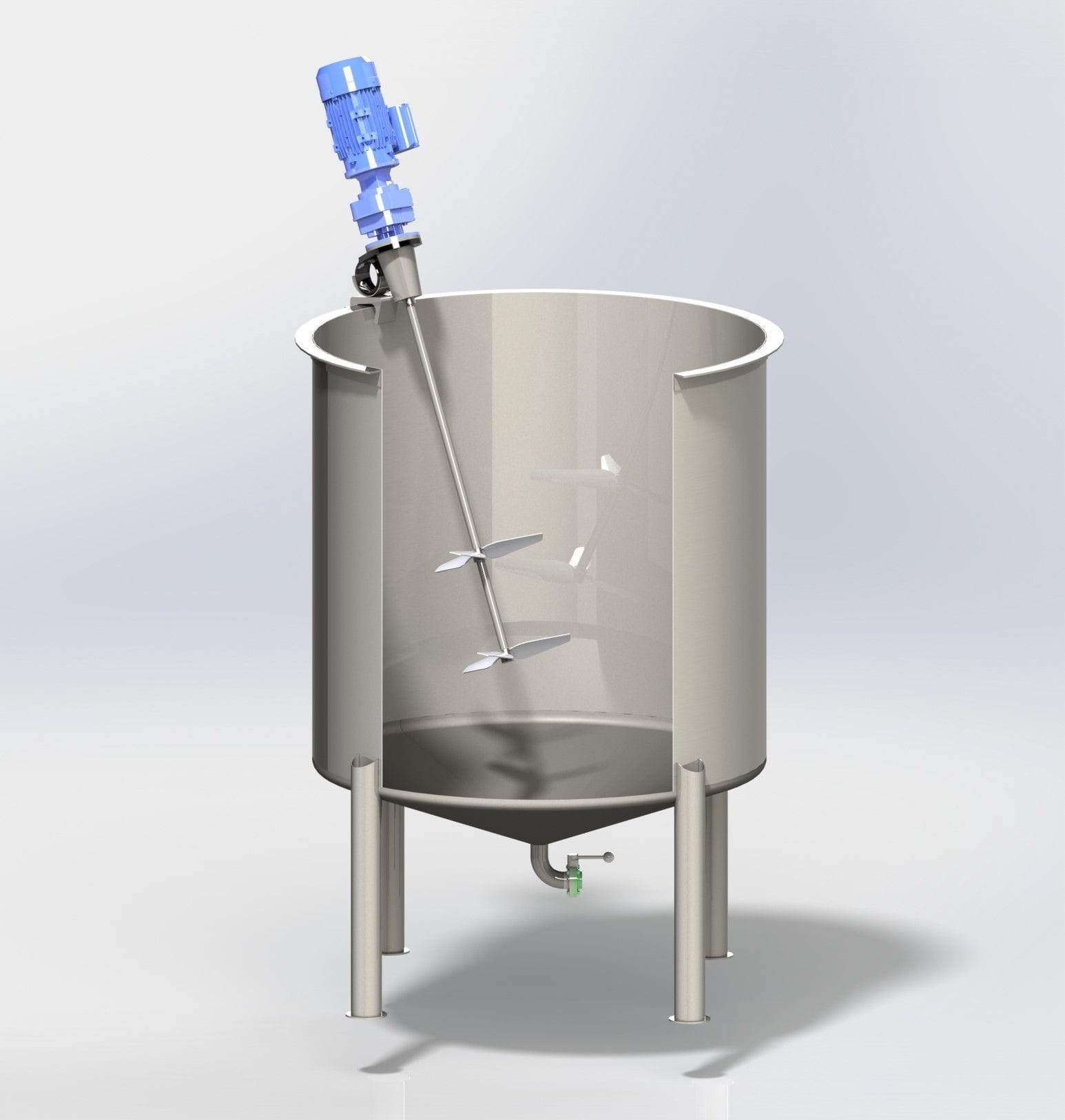

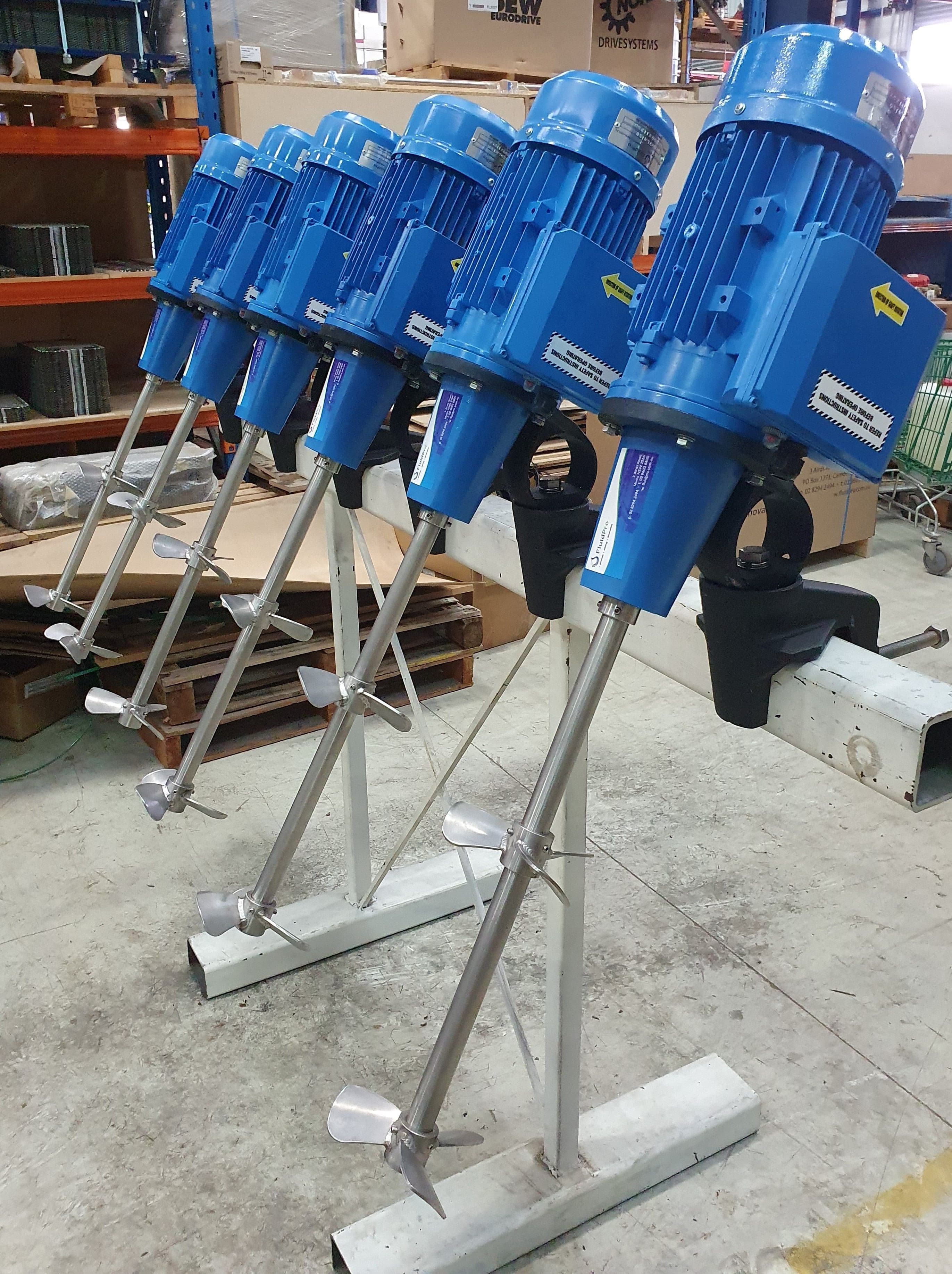

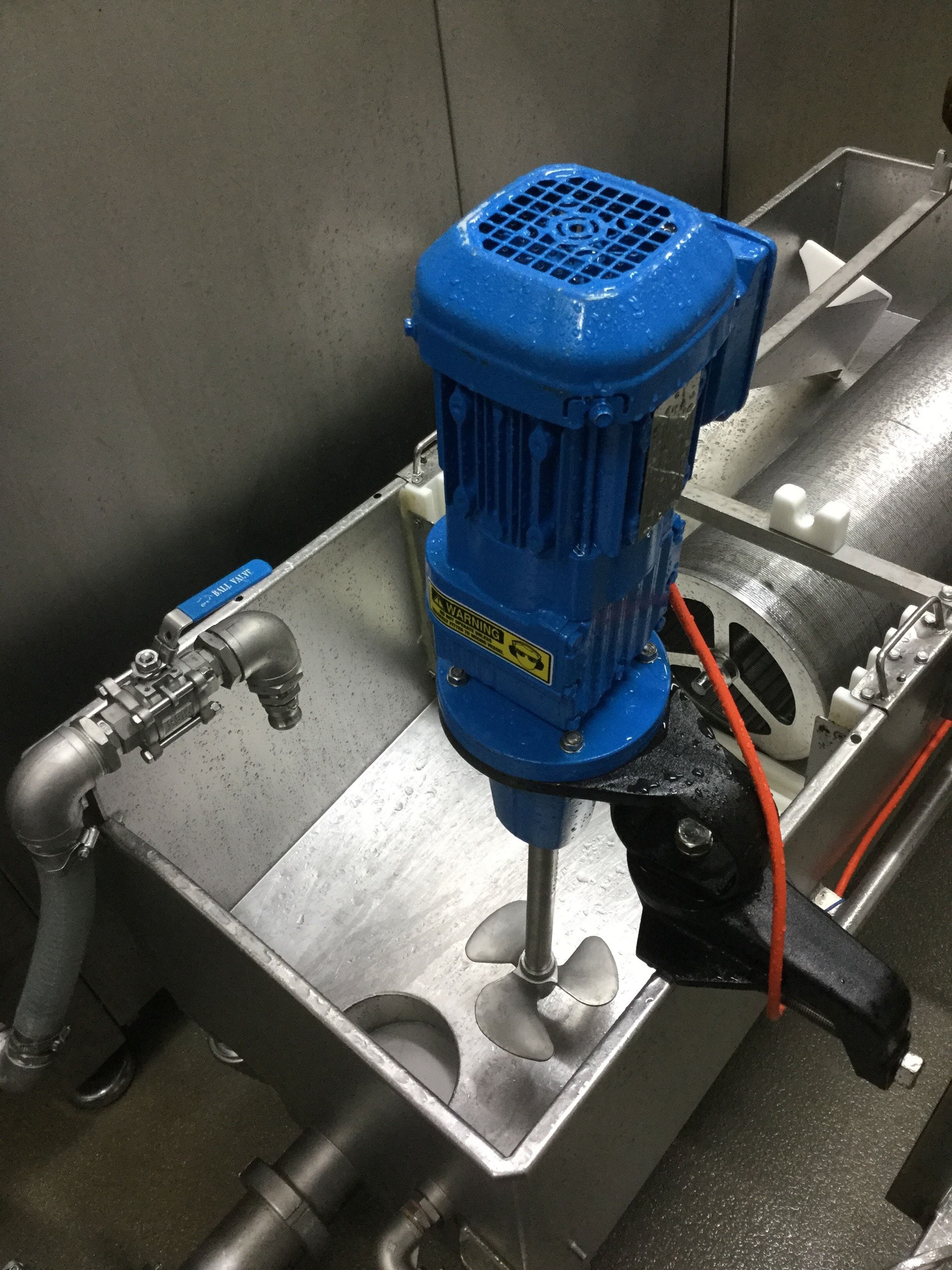

Clamp On Mixer Gallery
FluidPro's PS-10 Clamp Mount Mixers have been used in a variety of projects blending liquids, solids and semi-solids for the water treatment, food & beverage, cosmetics and chemical mixing industries. Click to enlarge images.
Shop this product online here.
