FluidPro's Gasket Plate Heat Exchangers are designed and manufactured to meet specific temperature demands and capacities for all your heating, cooling and energy recovery needs.
SERIES 32

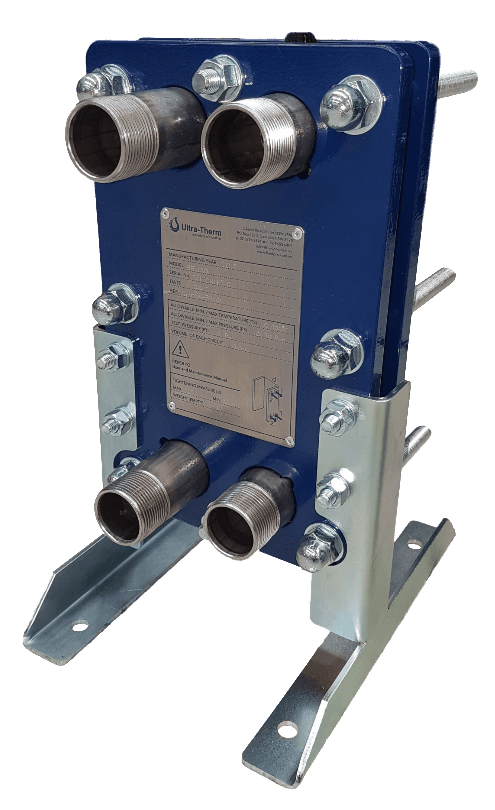

Exchange area 0.021m²Width 145mm Height 305mm Connections diameter DN32 1"1/4 Channel capacity 0.063LTightening quote 2.9mmPlate weight (with gasket) 0.18kgCorrugation angle AMax. water flowrate 19m³/hPS Max working pressure [bar] 6 10 16 25

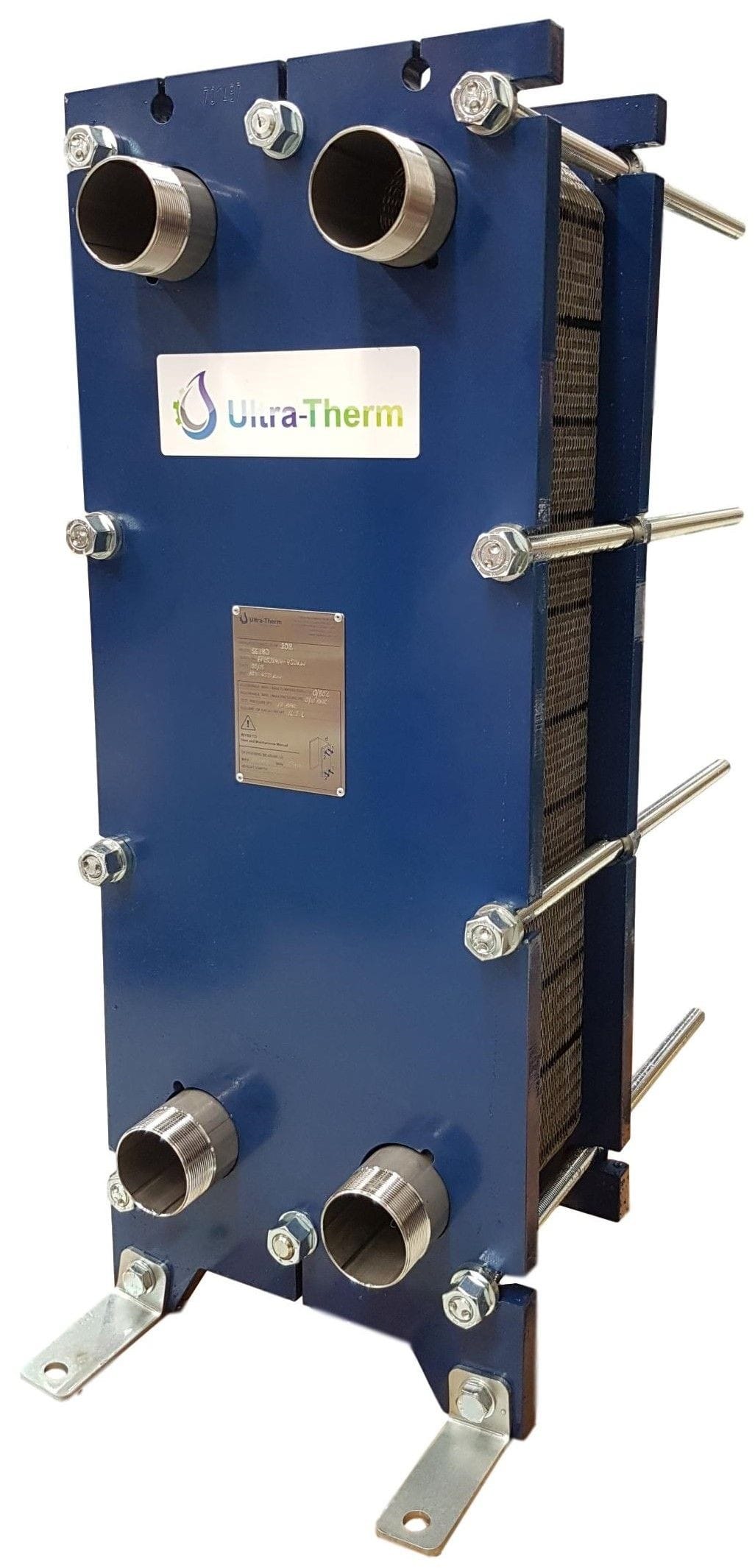

Exchange area 0.041m²Width 145mmHeight 455mmConnections diameter DN32 1"1/4Channel capacity 0.103LTightening quote 2.9mmPlate weight (with gasket) 0.27KgCorrugation angle AMax. water flowrate 19m³/hPS Max working pressure [bar] 6 10 16 25

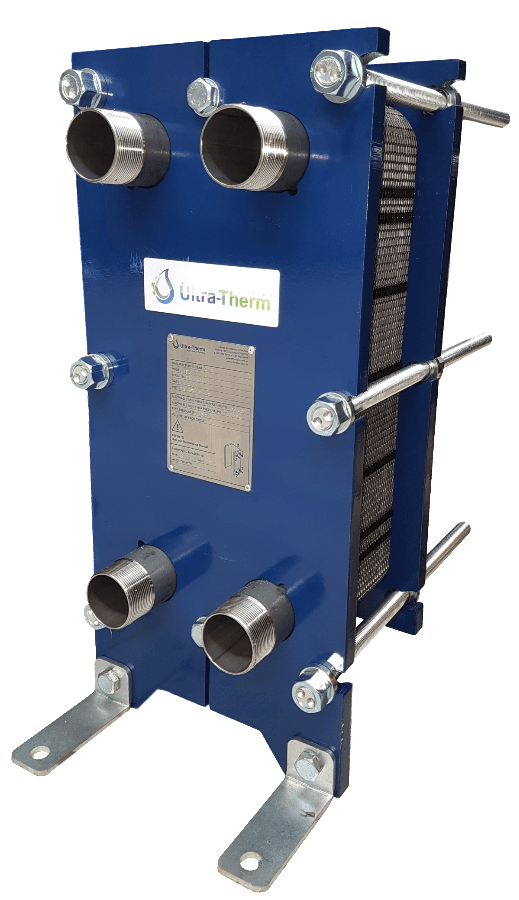

Exchange area 0.081m²Width 145mmHeight 740mmConnections diameter DN32 1"1/4Channel capacity 0.181LTightening quote 2.9mmPlate weight (with gasket) 0.45KgCorrugation angle AMax. water flowrate 19m³/hPS Max working pressure [bar] 6 10 16 25
SERIES 50

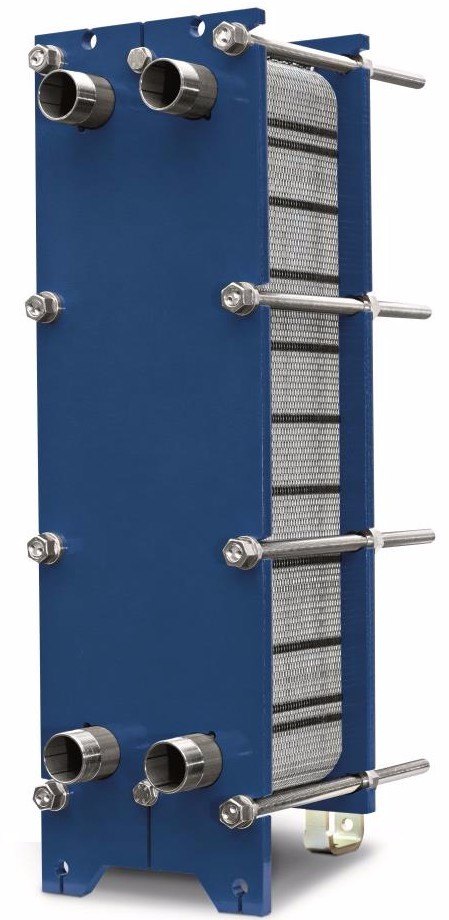

Exchange area 0.078m²Width 245mmHeight 527mmConnections diameter DN50 2"Channel capacity 0.217LTightening quote 2.9mmPlate weight (with gasket) 0.517kgCorrugation angle A/BMax. water flowrate 63m³/hPS Max working pressure [bar] 6 10 16 25

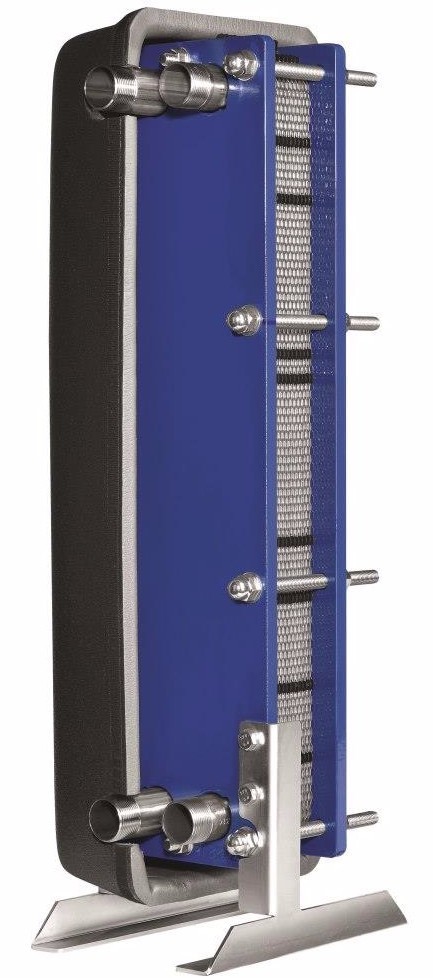

Exchange area 0.164m²Width 245mmHeight 857mmConnections diameter DN50 2"Channel capacity 0.383LTightening quote 2.9mmPlate weight (with gasket) 0.856kgCorrugation angle A/BMax. water flowrate 63m³/hPS Max working pressure [bar] 6 10 16 25

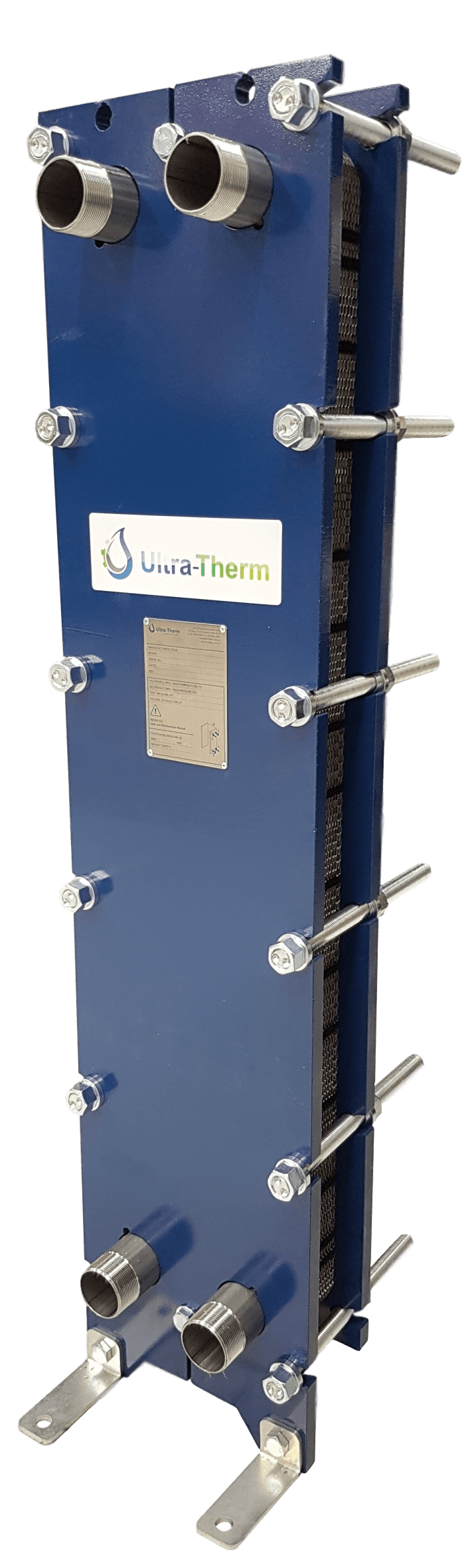

Exchange area 0.254m²Width 245mmHeight 1202mmConnections diameter DN50 2"Channel capacity 0.555LTightening quote 2.9mmPlate weight (with gasket) 1.213kgCorrugation angle A/BMax. water flowrate 63m³/hPS Max working pressure [bar] 6 10 16 25
SERIES 65

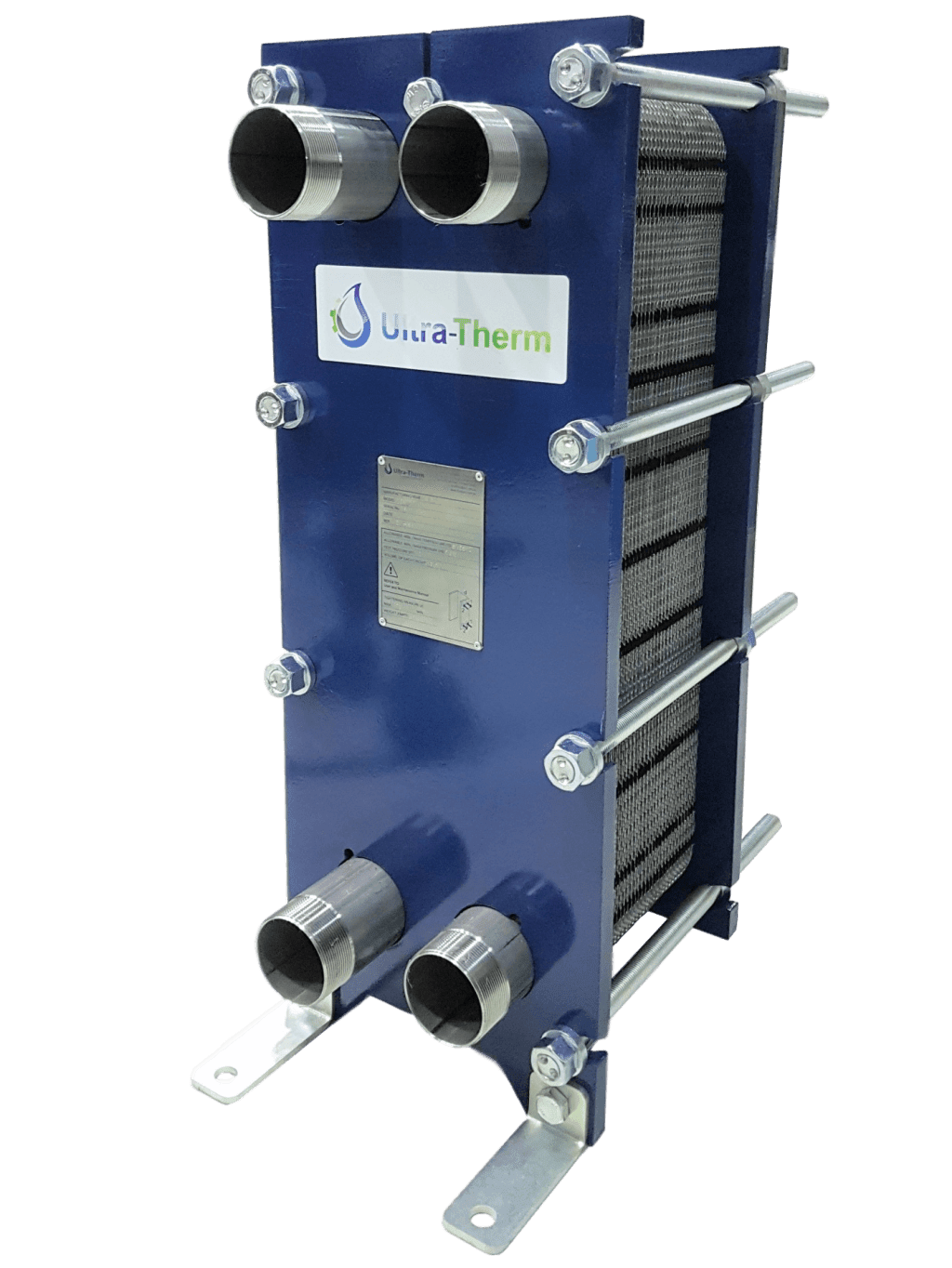

Exchange area 0.125m²Width 245mmHeight 723mmConnections diameter DN65 2 1/2"Channel capacity 0.366LTightening quote 3.3mmPlate weight (with gasket) 0.69kgCorrugation angle A/BMax. water flowrate 80m³/hPS Max working pressure [bar] 10 16

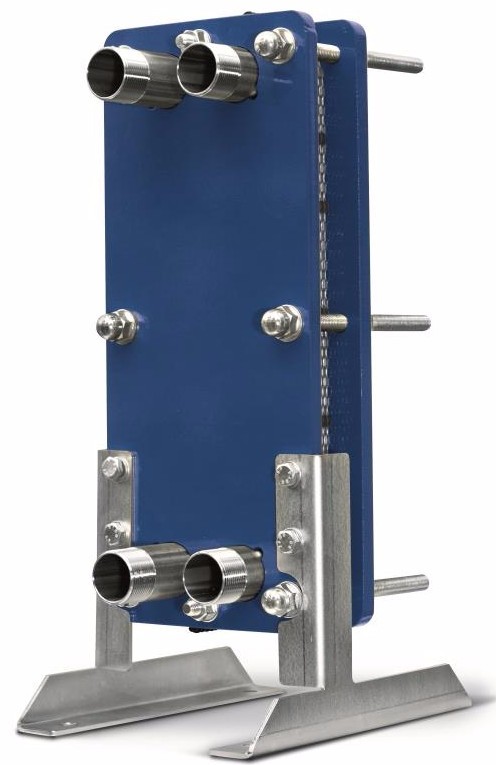

Exchange area 0.18m²Width 320mm Height 844mmConnections diameter DN65 2 1/2"Channel capacity 0.5LTightening quote 2.85mmPlate weight (with gasket) 1.03kgCorrugation angle A/BMax. water flowrate 83m³/hPS Max working pressure [bar] 10
