FluidPro DM-10 Series IBC Mixers
FluidPro's DM-10 Series IBC Tote Mixers are a unique range of fluid mixing equipment designed for mixing and blending liquid products. Combine storage and mixing for a cost-effective fluid agitation system.
IBC Agitator Features
Completely portable, durable and robust, the FluidPro DM-10 Series IBC mixer includes the following features to ensure consistent, dependable product quality to the end user:
- Portable design for easy transport
- Fully welded stainless steel bridge for a snug fit to IBC tanks
- Forkliftable frames
- Heavy duty nosecone assembly for shaft support bearing
- Integrated quick release shaft coupling
- Innovative fold-out impeller design for mixing different viscosity fluids
- Variable Speed Drive Option

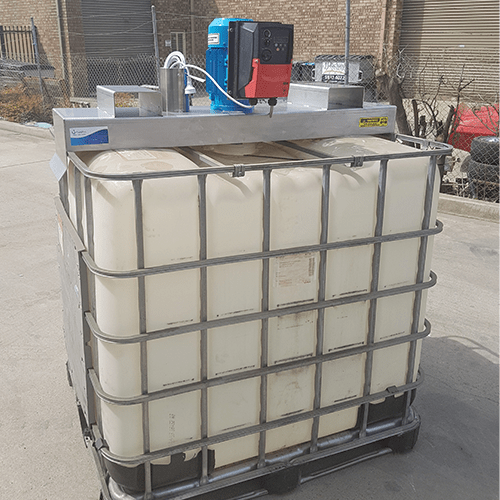

.png "FluidPro DM-10 Series IBC Mixer")
FluidPro DM-10 IBC tote tank mixers are available in gear driven (low speed), direct driven (high speed), and explosion proof motors in 240V or 415V, ranging from 0.37kW to 2.2kW to suit your mixing needs.
Options
- 415V 3 phase electric motor
- 240V single phase electric motor
- Pneumatic motor
- Flameproof & explosion proof motor options
- Variable Speed Drive IP66 240V or 415V
- Lead and plug (10 amp/15 amp)
- Filing hopper
- Variety of impeller sizes & styles
- Inline oiler
- 3m plug with plug storage pocket
Specifications
- Total unit weight: 35kg
- Shaft dimensions: Ø25.4mm x 800mm
- Suitable for product viscosity up to 10 000cPs
- Pre-wired 3m lead and plug with plug storage pocket
- Forkliftable frames
- Quick release shaft connection
- Shaft support bearing
- Heavy duty stainless steel mounting bridge
- IP56 electric motor, totally enclosed
Discover the DM-10 Series IBC Tote Mixer
Designed to suit standard IBC tote tanks, FluidPro's DM-10 Series IBC tote tank mixer helps you create an all-in-one storage and mixing solution.
FluidPro DM-60 Series IBC Mixers
FluidPro's DM-60 Pneumatic units are designed for high-speed or high-intensity mixing applications, with an air-driven motor to reduce overloads on high-output jobs. With no ignition source, pneumatic IBC mixers are ideal for mixing combustible ingredients or operations where flammable vapours or gases may be present.
Features of the DM-60 IBC Mixer
A lightweight IBC mixer manufactured using custom software, the FluidPro DM-60 Series IBC mixer includes a range of features to provide optimal mixing for your application:
- Portable design for easy transport
- Quick release shaft coupling
- Pneumatic drive for high-powered fluid processing
- Innovative fold-out impeller design
- Optional injection port and pressure seals
- Ridged support couplings

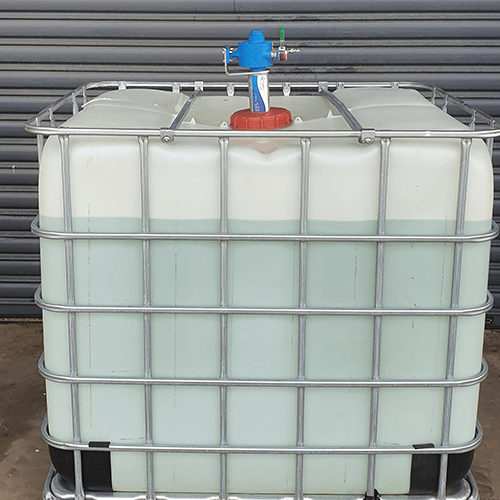

.png "FluidPro DM-10 Series IBC Mixer")

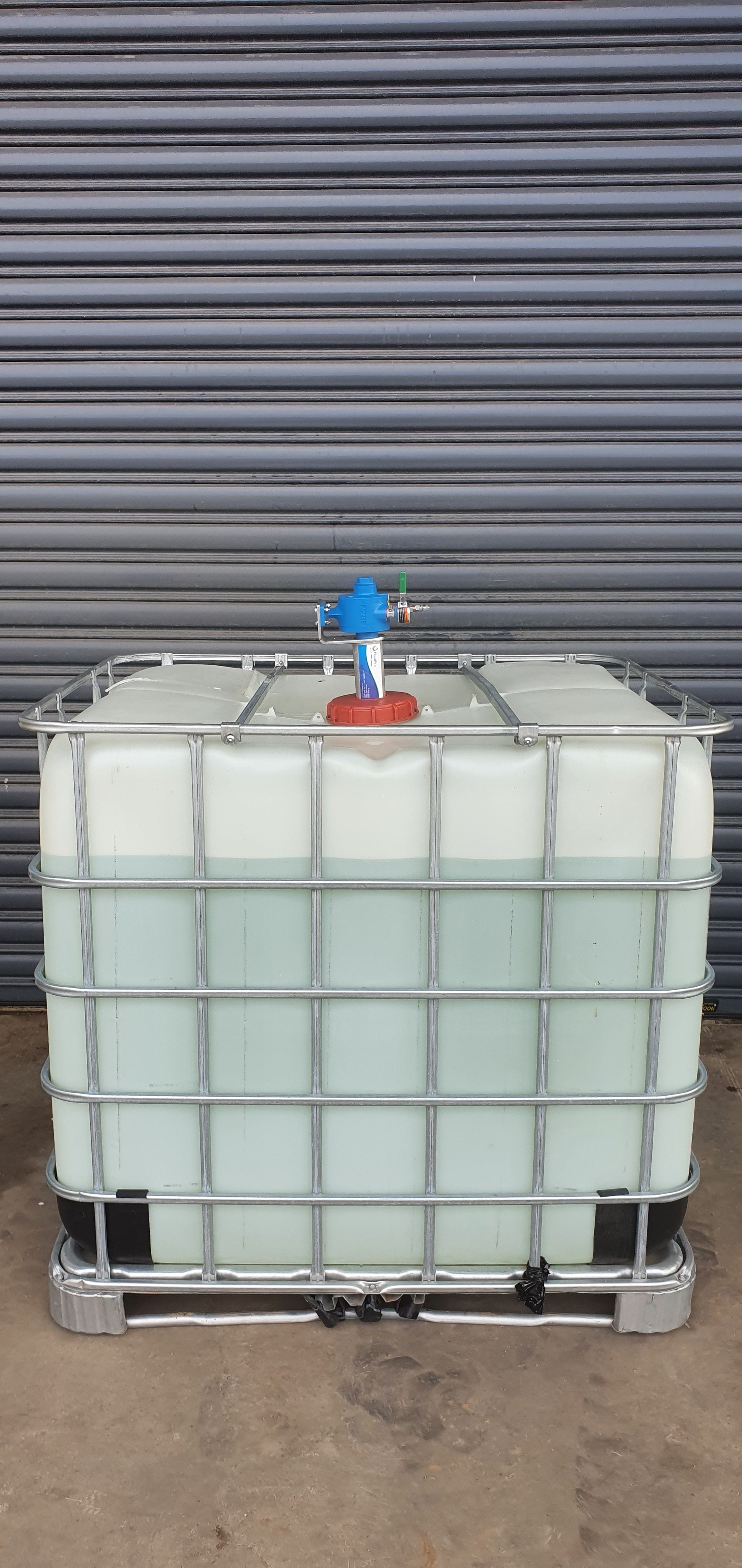

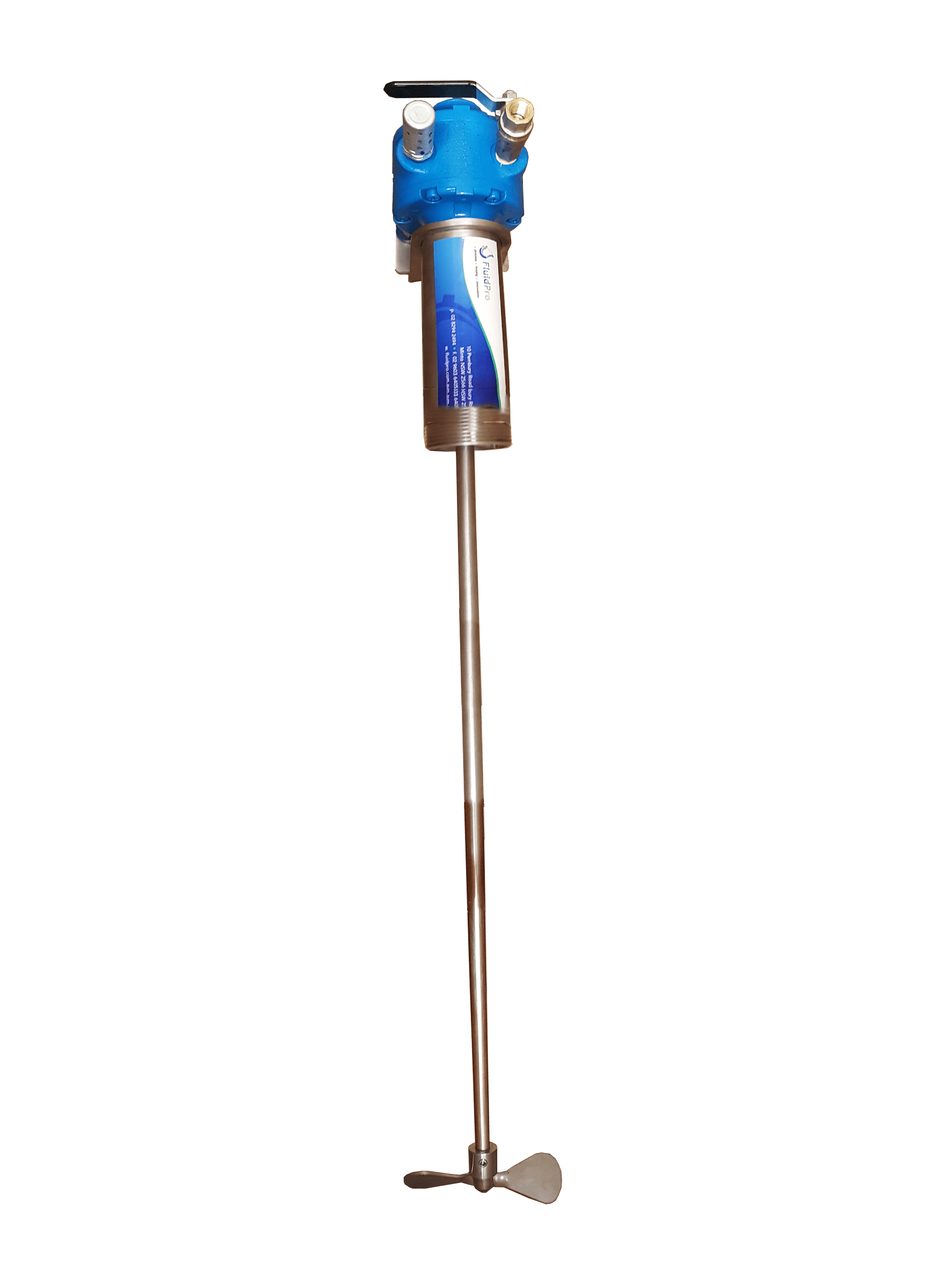

FluidPro DM-60 IBC tank mixers feature a 0.2 - 1.4kW pneumatic drive which operates at 300 - 3000rpm. Weighing just 6kg, this is a lightweight option ideal for blending low viscosity fluids.
Options
- Inline Oiler
- Options to seal for pressure
- Wattage range: 0.2 - 1.4kW
- Optional injection port
Specifications
- Total unit weight: 6kg
- Shaft dimensions: Ø12.7mm x 925mm
- Air Pressure: 140 - 170 Kpa
- Sound Level: 87dB (A) MAX
- 1x Ø160mm Foldout impeller
- R290 blades designed for IBCs
- Stainless steel housing
- All whetted parts 316 stainless steel
IBC Mixers Gallery

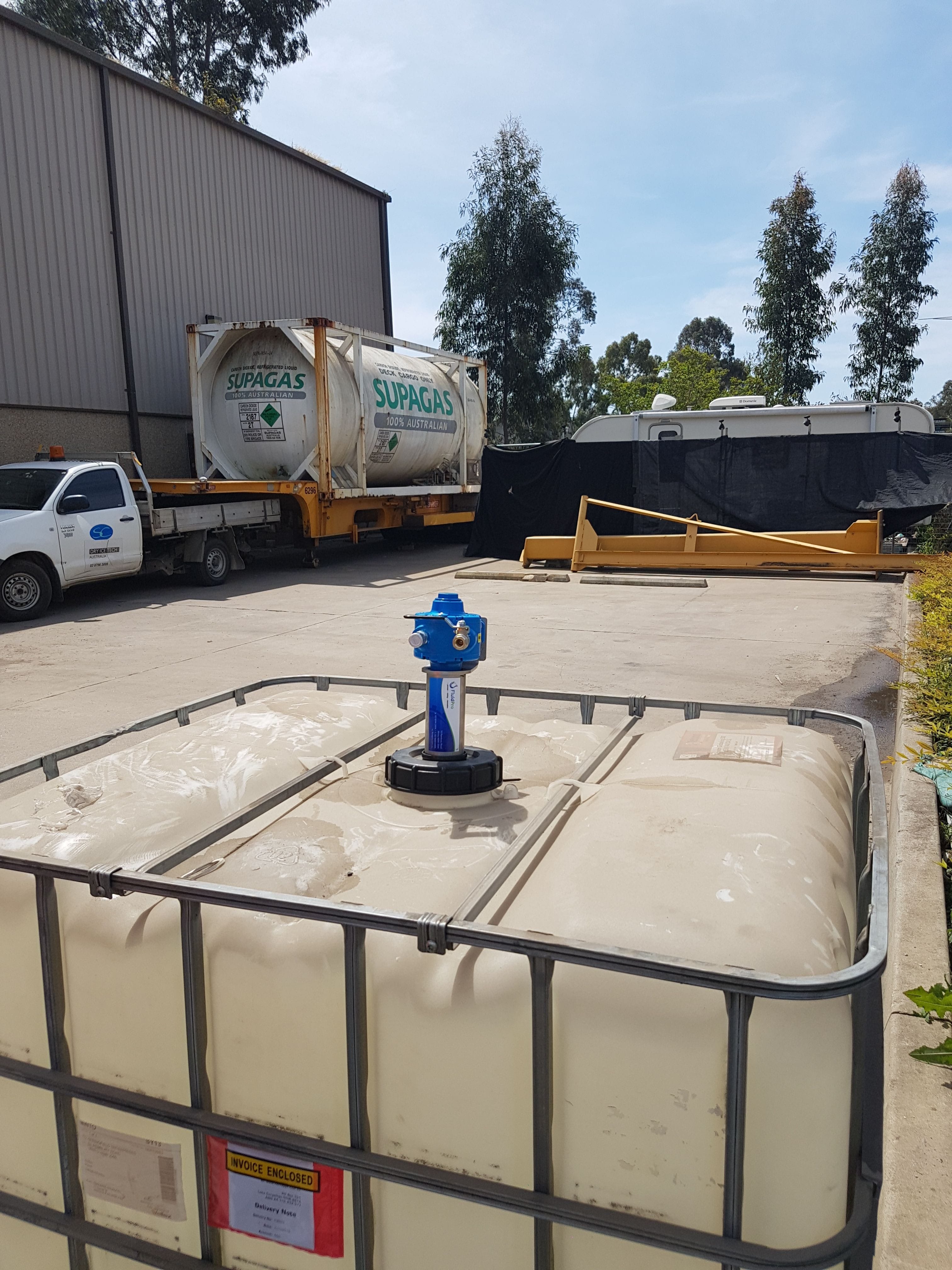

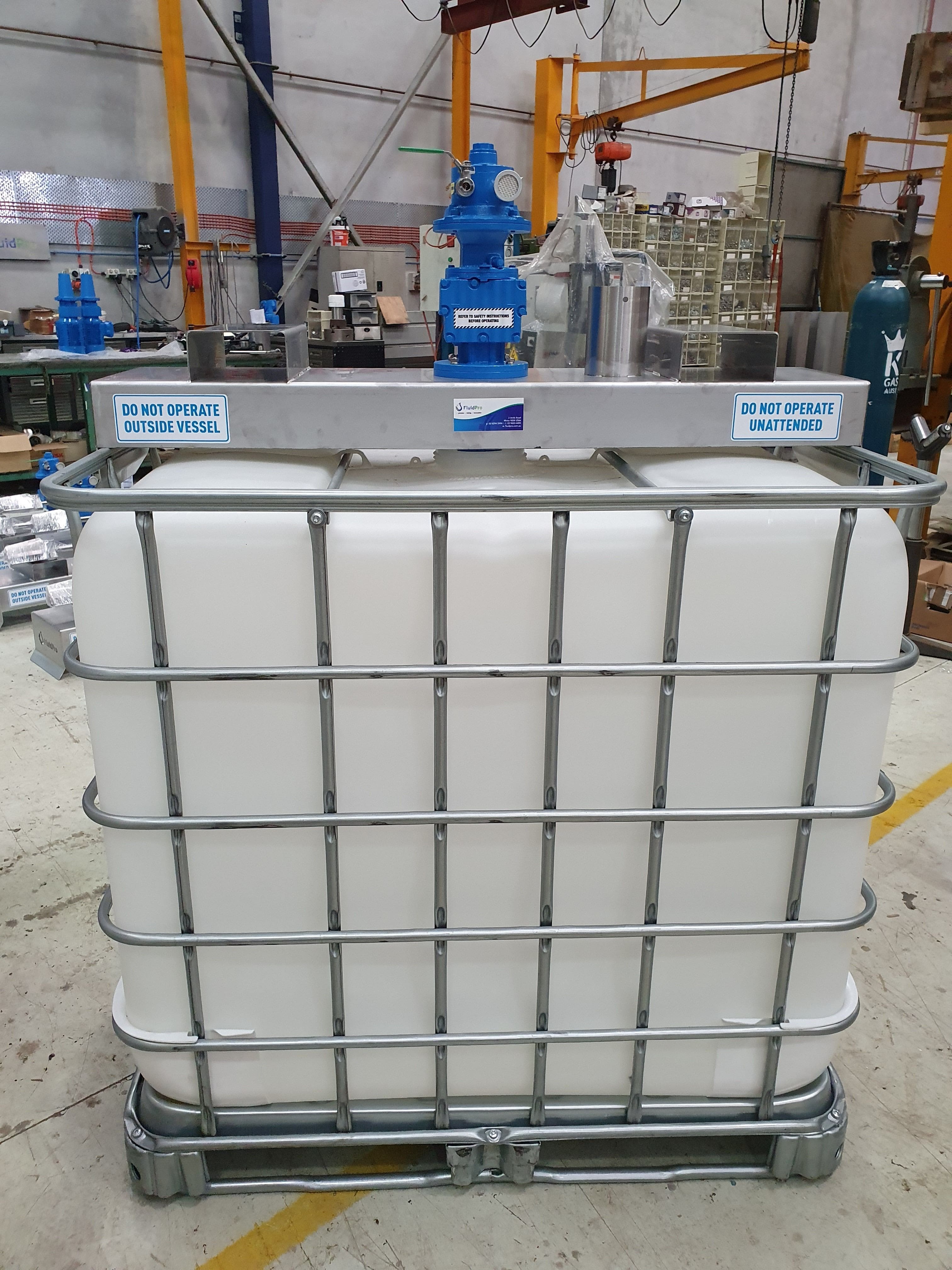

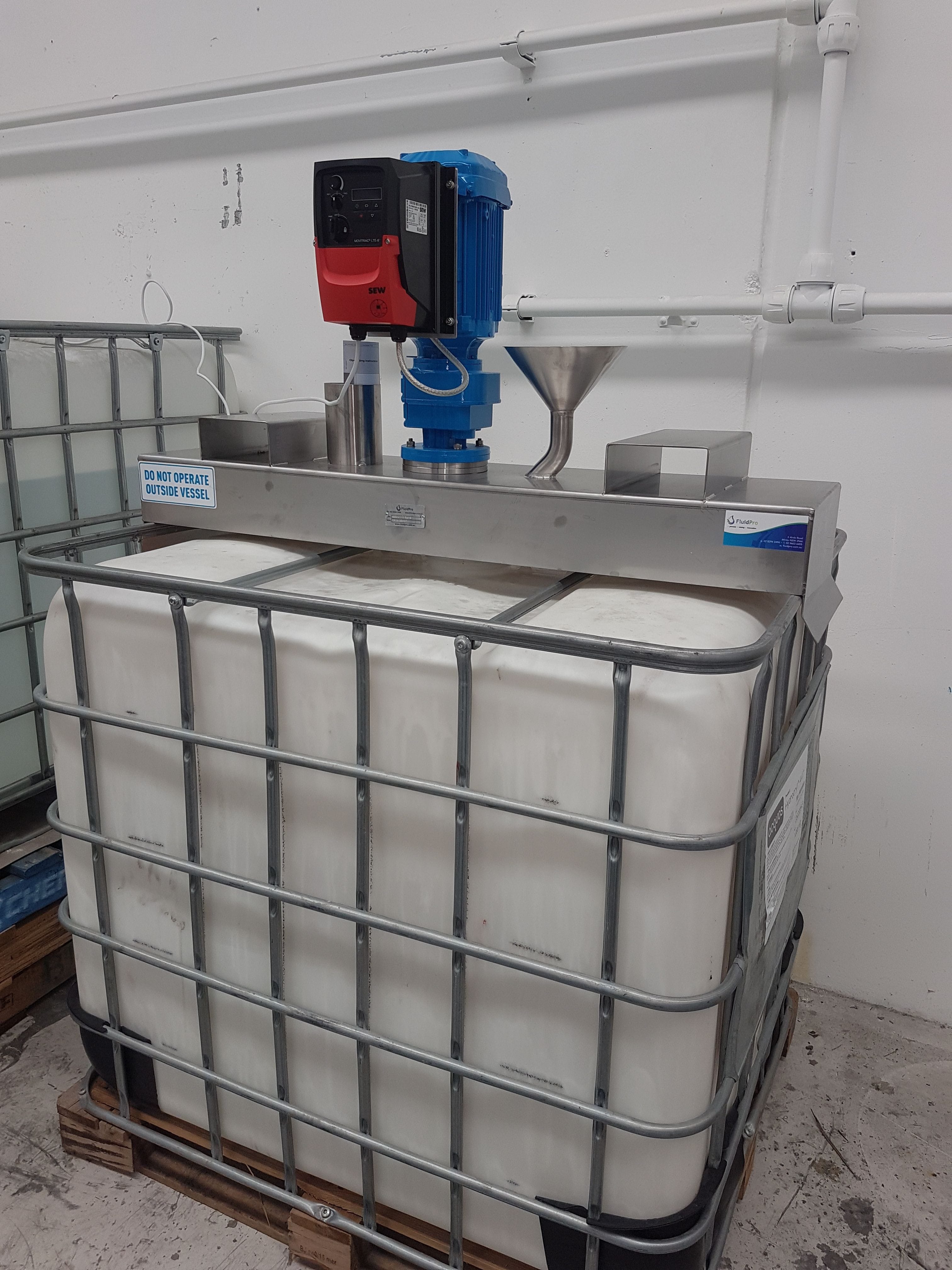

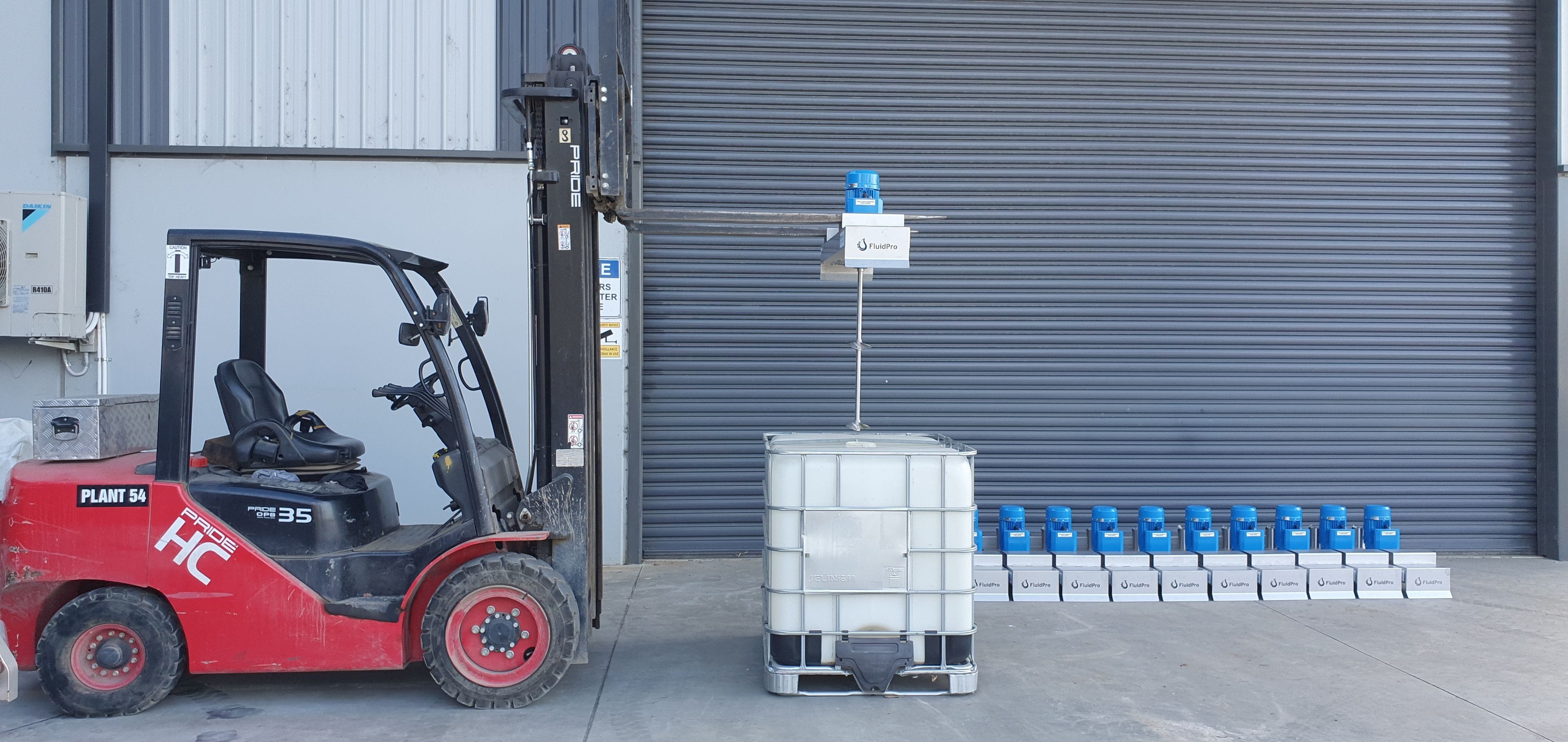

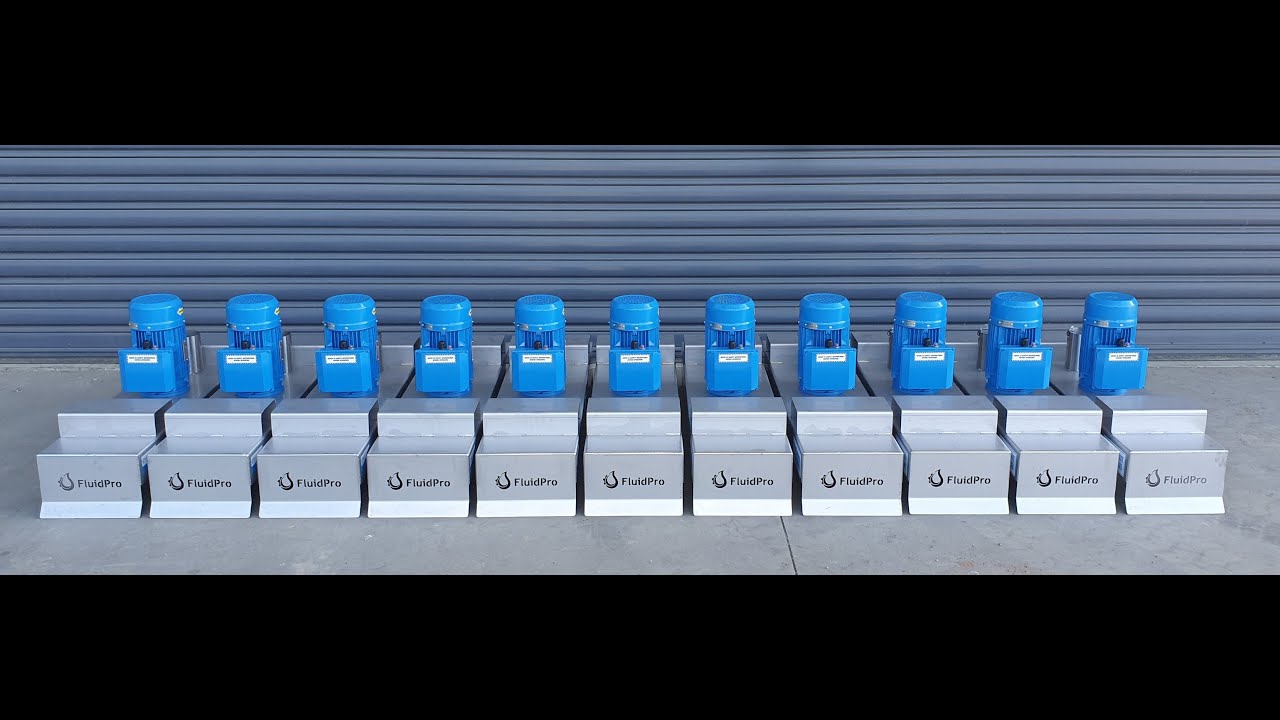

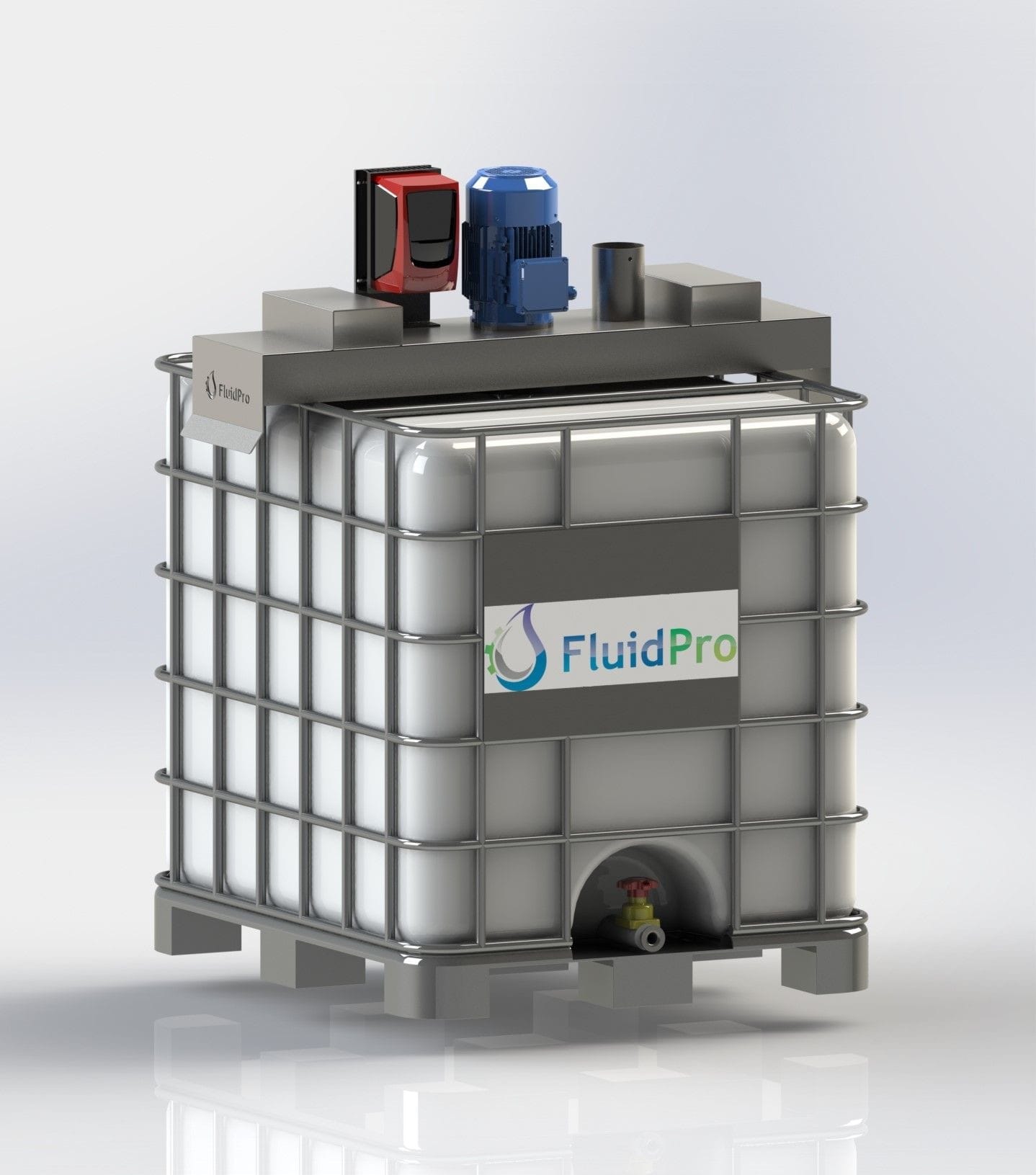

FluidPro's DM-10 and DM-60 IBC Mixers have been used in a variety of projects blending liquids, solids and semi-solids for the water treatment, food & beverage, cosmetics and chemical mixing industries. Click to enlarge images.
.JPG)
.JPG)
.jpg)
.jpg)
Projects: IBC Mixers & Agitators Made in Australia

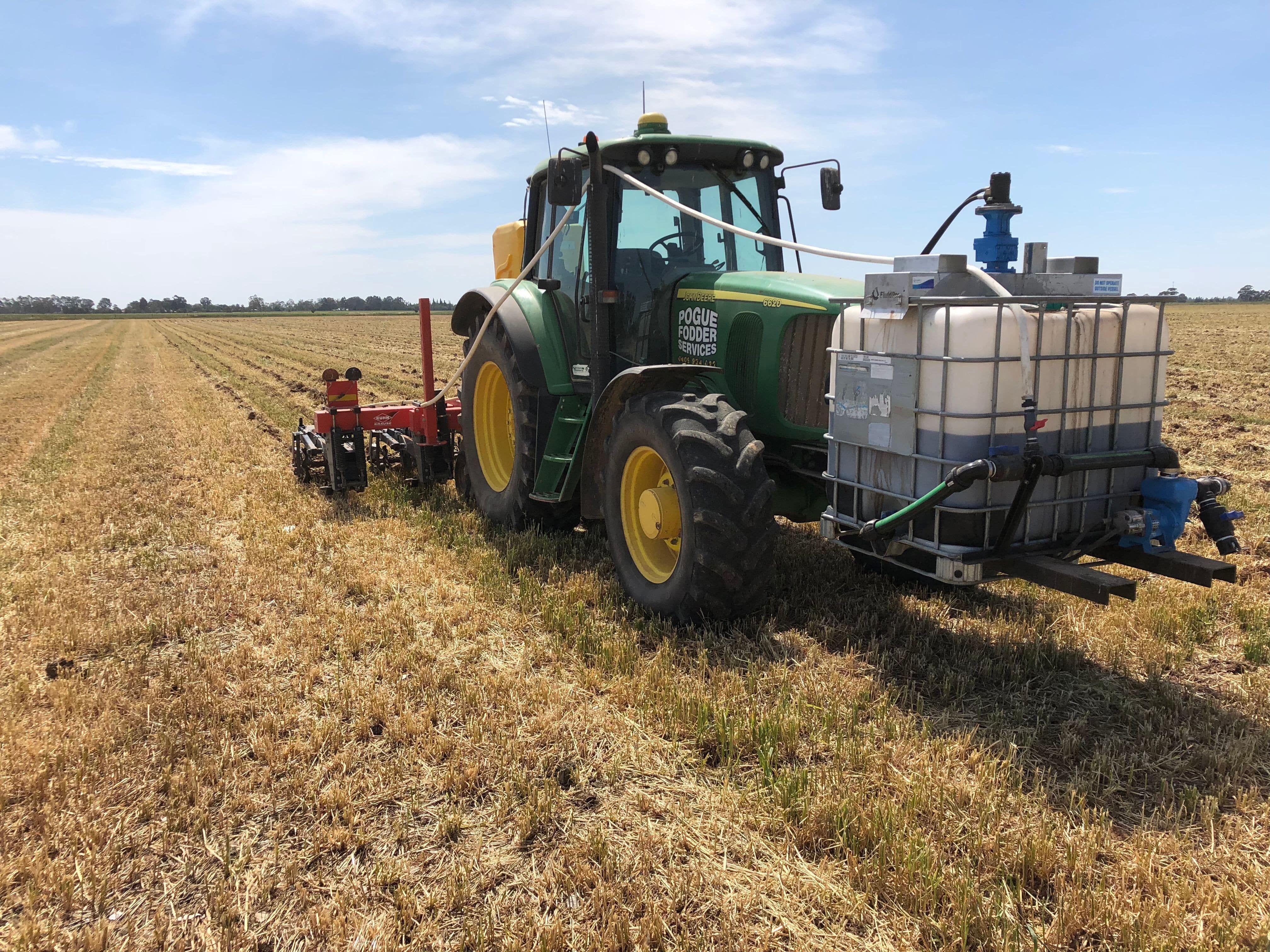

FluidPro IBC Mixers have been used across a wide range of industry applications. Discover some of the ways we have assisted on a variety of projects, from chemical dosing to food production to liquid fertiliser blending. Every IBC tank mixer is tailored to your project specifications and specific industry requirements.

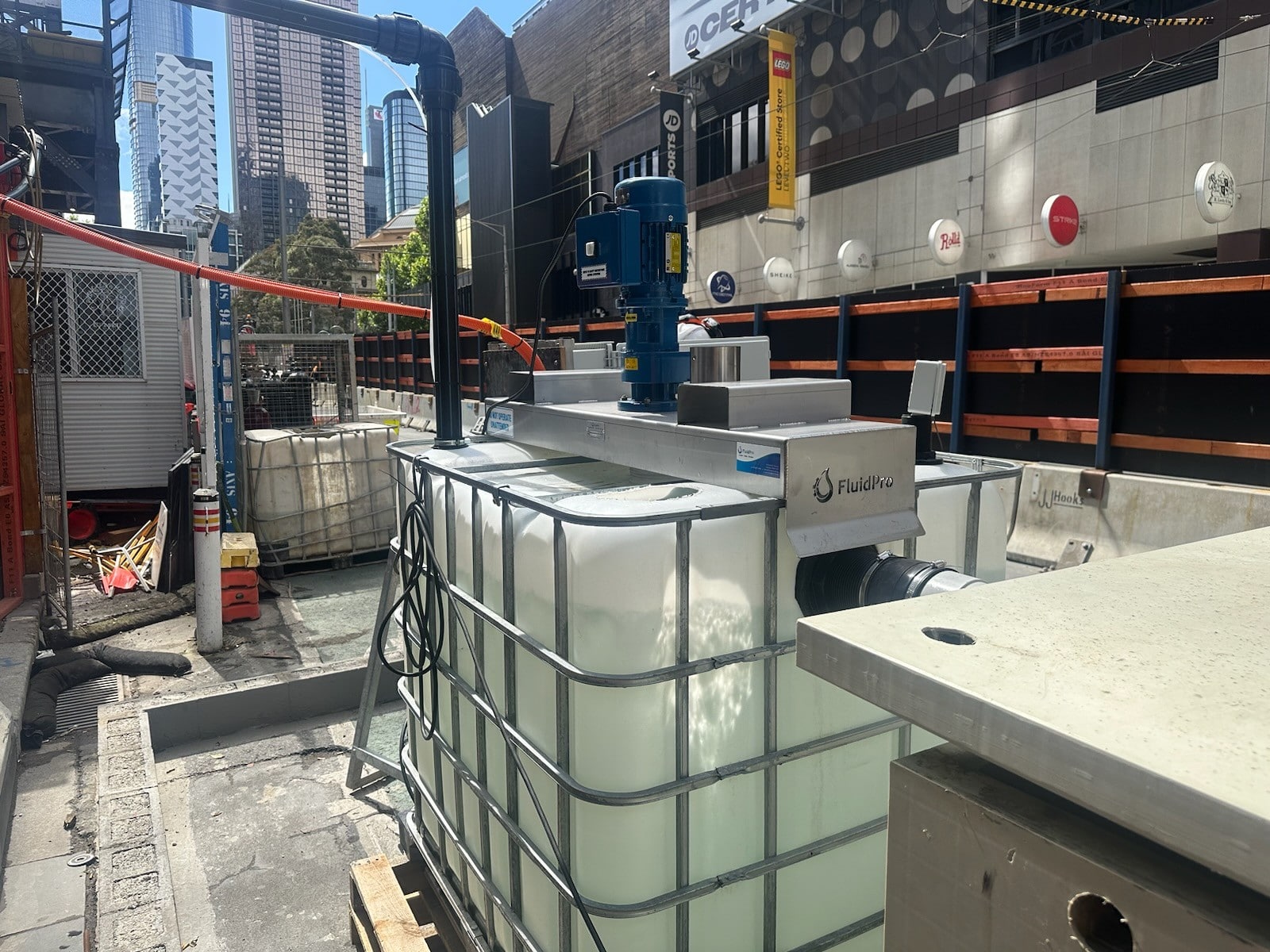

Wastewater Treatment Project
Our DM-10 Bridge Mount IBC Agitator helped provide effective chemical dosing for this water treatment project in Melbourne.
