Side Entry Agitator Mixers

Side entry mixers are used to achieve consistent tank turnover.
FluidPro side entry mixers combine over 40 years of fluid mixing technology. Designed specifically with the high efficiency FluidFoil impellors, FluidPro side entry agitator mixers provide the most productive method of converting energy into fluid motion in large storage tanks and process vessels. Series SE-10 side entry agitators are ideally suited for fluid of low to medium viscosity. Designed to move liquid away from the tank to create a uniform turnover of tank contents. Fluidfoil Series AF70 high efficiency axial flow impellors provide maximum pumping and thrust for maximum agitation, resulting improved production times.
Applications
The FluidPro SE10 High Efficiency Side Entry Mixers are used in many applications include blending, solids in suspension, heat transfer (optimises refrigeration efficiency) and mass transfer. Other key Industries with applications that require the FluidPro SE10 series mixers are the wine industry, chemical processing industry and more, with applications including:
  • Winemaking and wine production
  • Heat transfer and optimising refrigeration efficiency
  • Slurry processing
  • Food and beverage processing
  • Mass transfer
  • Water treatment and wastewater pH correction
  • Product resuspension
  • Vessel cleaning
  • Ethanol/biofuel blending
  • Chemical mixing and chemical processing
request a quote

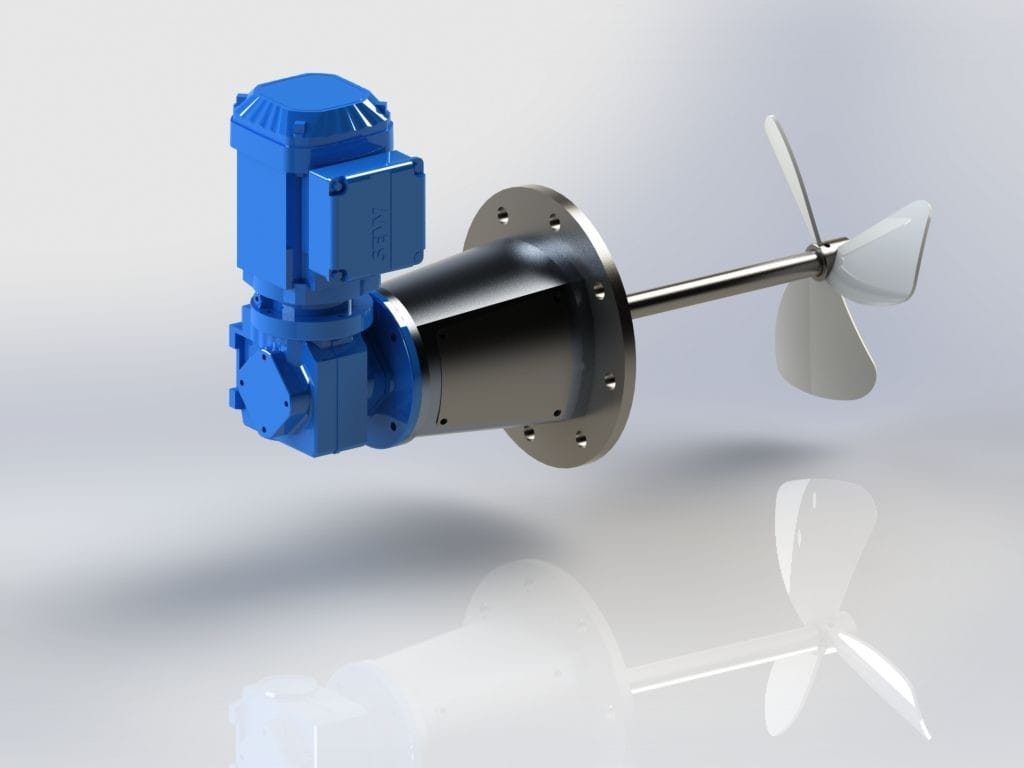

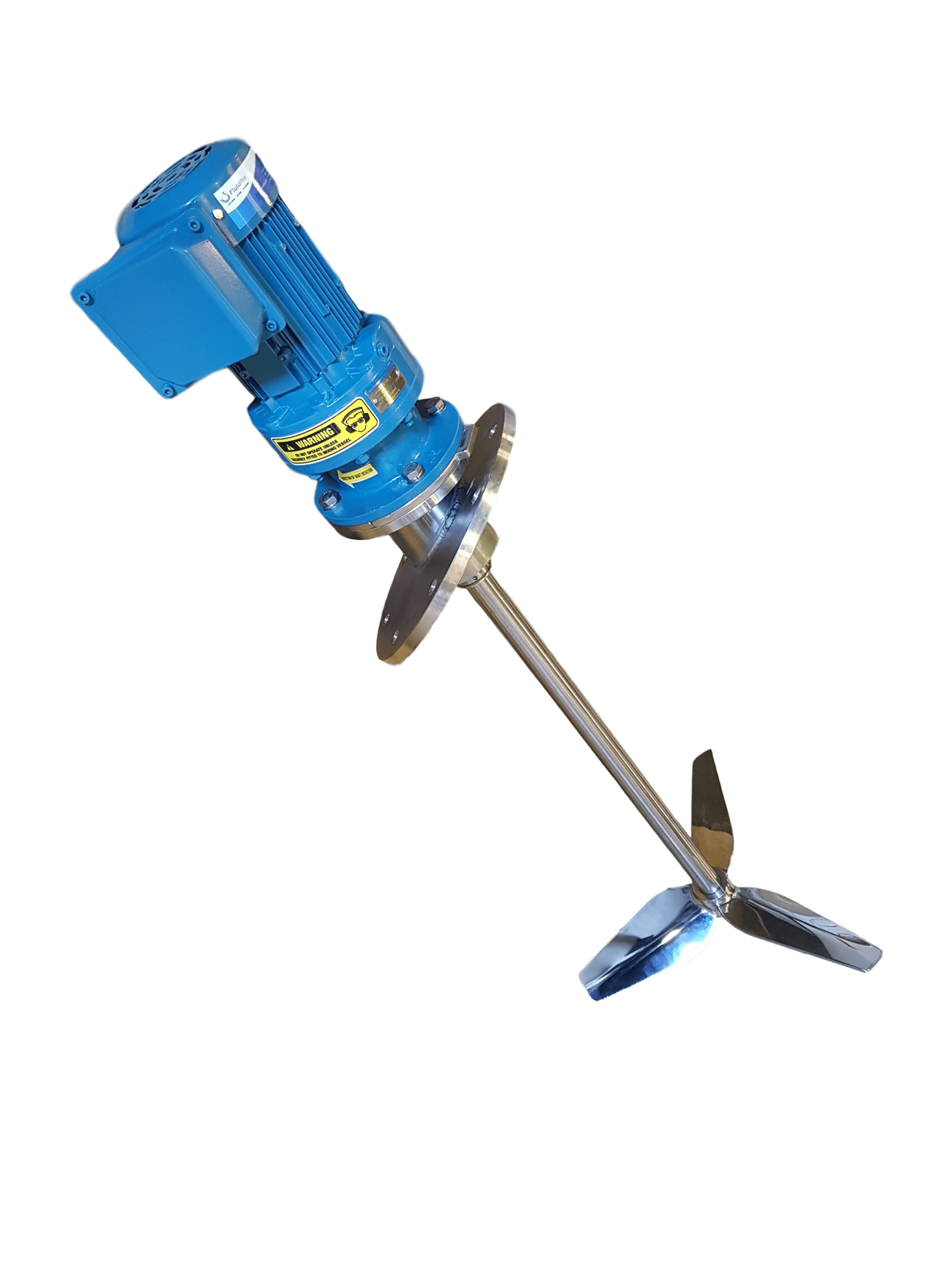

FluidPro SE-10 Series Side Entry Mixers
Designed using computational fluid dynamics technology, the FluidPro SE-10Series Side Entry Mixer can be customised to suit your processes and vesseldesign, including angular or straight mounts pre-curved to suit your existingtank radius.
Features
Designed and manufactured in Australia, FluidPro provides robust side entry mixer solutions.
  • Highly efficient FluidFoil impellers designed and optimised for maximised pumping and minimal operational costs
  • Mechanical seals are selected specifically for each application including emergency shut off seal for maintenance
  • Customised housing constructed of stainless steel, available in both angular and straight design

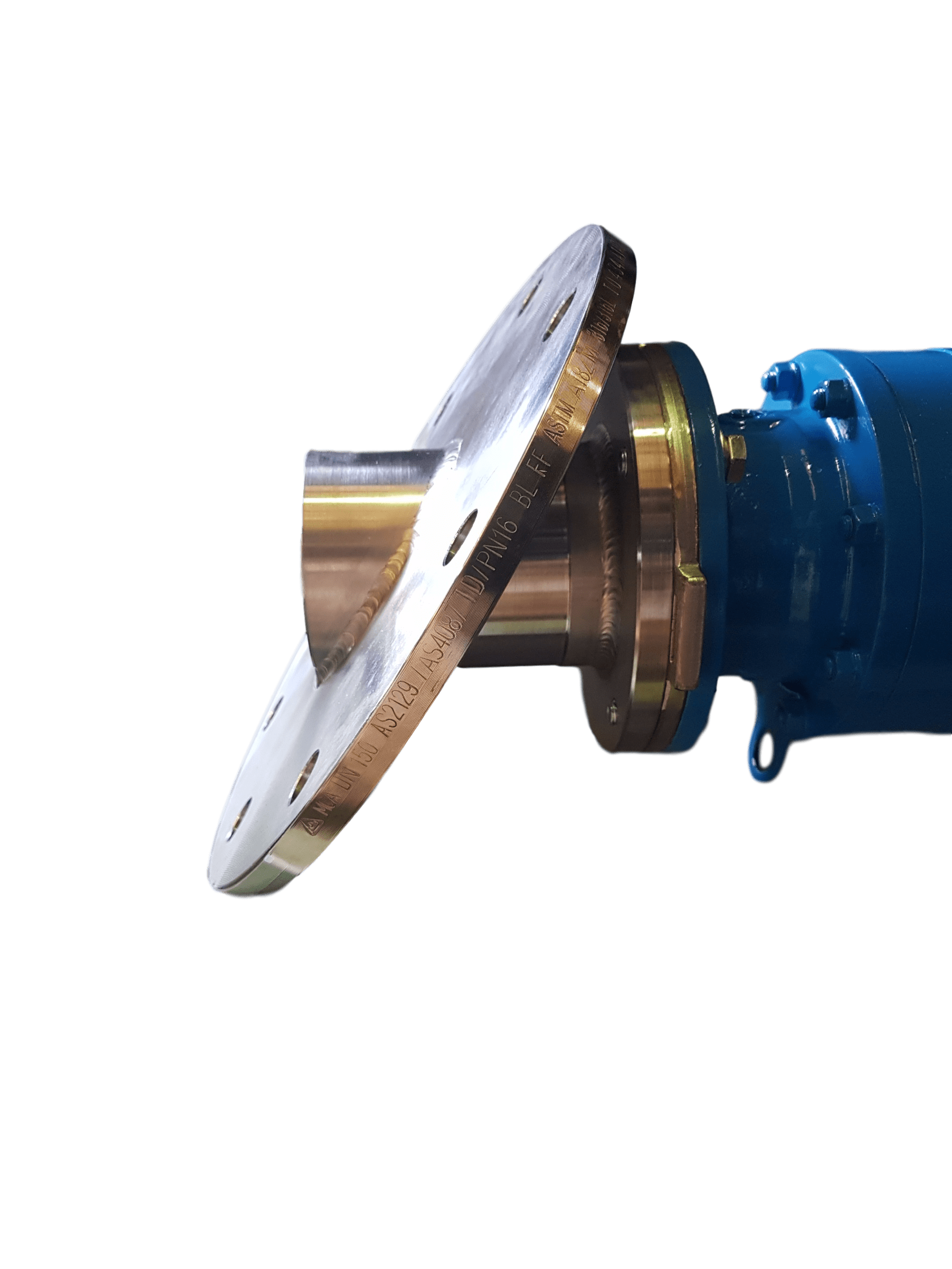

  • Specialised range of FluidPro tank mounting flanges available, with contoured compensation flanges fabricated specifically to suit tank diameters
  • Clean design solution with all whetted parts from 316 stainless steel as standard
  • Mechanical seal strategically placed in the wash area of vessels fitted with Clean In Place (CIP) systems
request product brochure

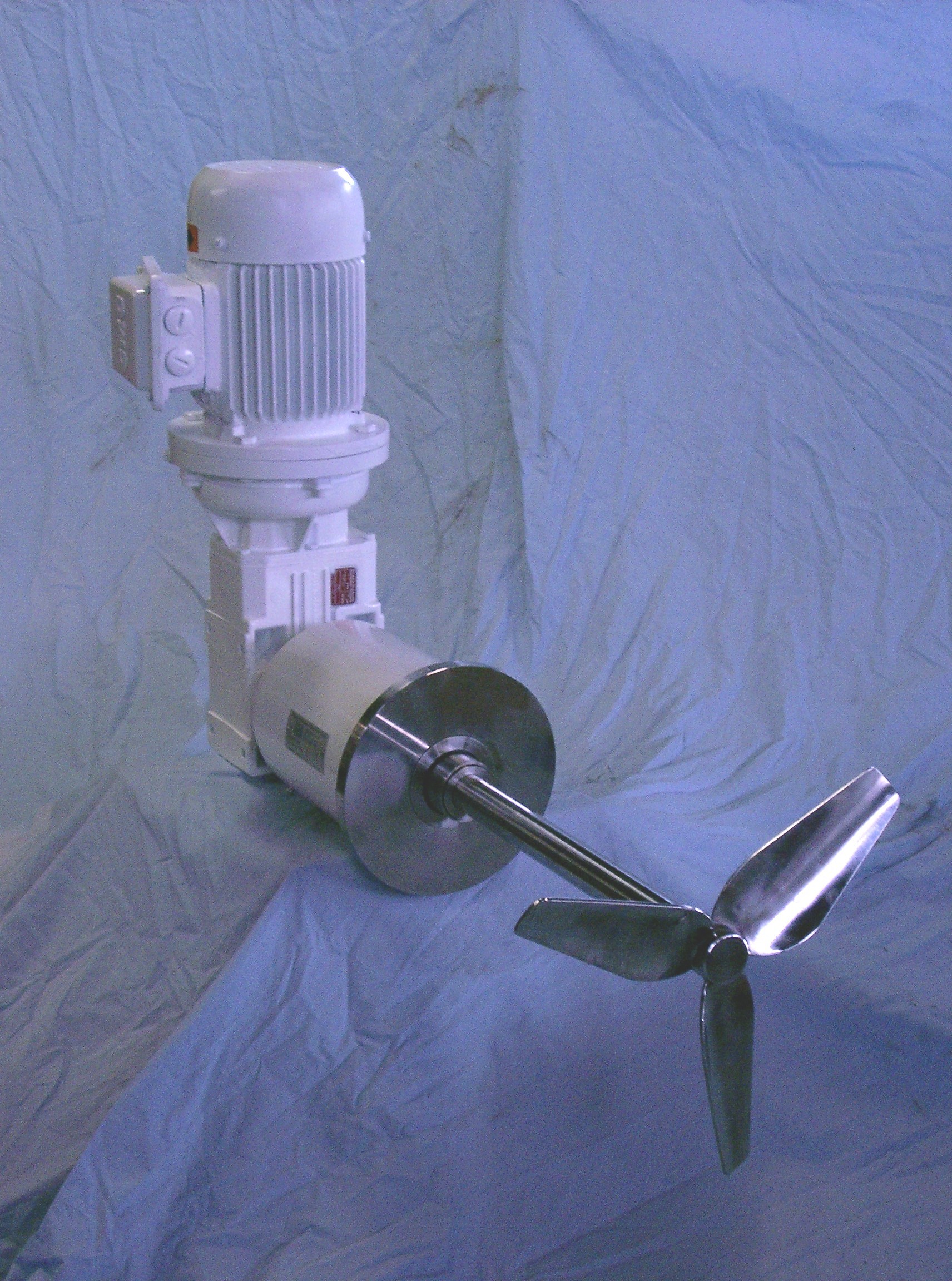

FluidPro Side Entry Mixers are available in: Gear Driven (Low Speed), Direct Driven (High Speed) and Explosion proof motors in 240V or 415V. Motor power (kW) and speed (rpm) are selected suited to your mixing needs.
Options
Specifications
  • Various tank mounting plate designs
  • Variable Speed Drive IP66 240V or 415V
  • Hygienic designs for pharmaceutical installations
  • Improved safety motor for flammable goods environments
  • Mounting flanges
  • Available in a variety of drives ranging from 0.37-11kW
  • Available in various length shafts
  • Available in various style propellers
  • Mixer mounting frame
REQUEST  a quote
  • Highly efficient axial flow FluidFoil impeller
  • Keyed impeller hubs for secure shaft attachment
  • IP56 standard motor protection
  • Mechanical seals to suit applications
  • Heavy duty pedestal
DOWNLOAD SPEC SHEET
Side Entry Mixers Gallery

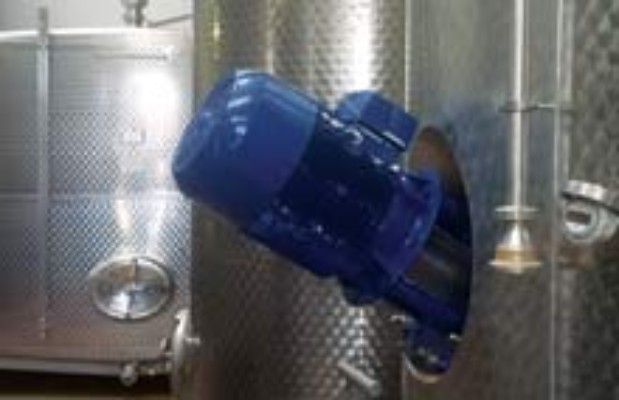

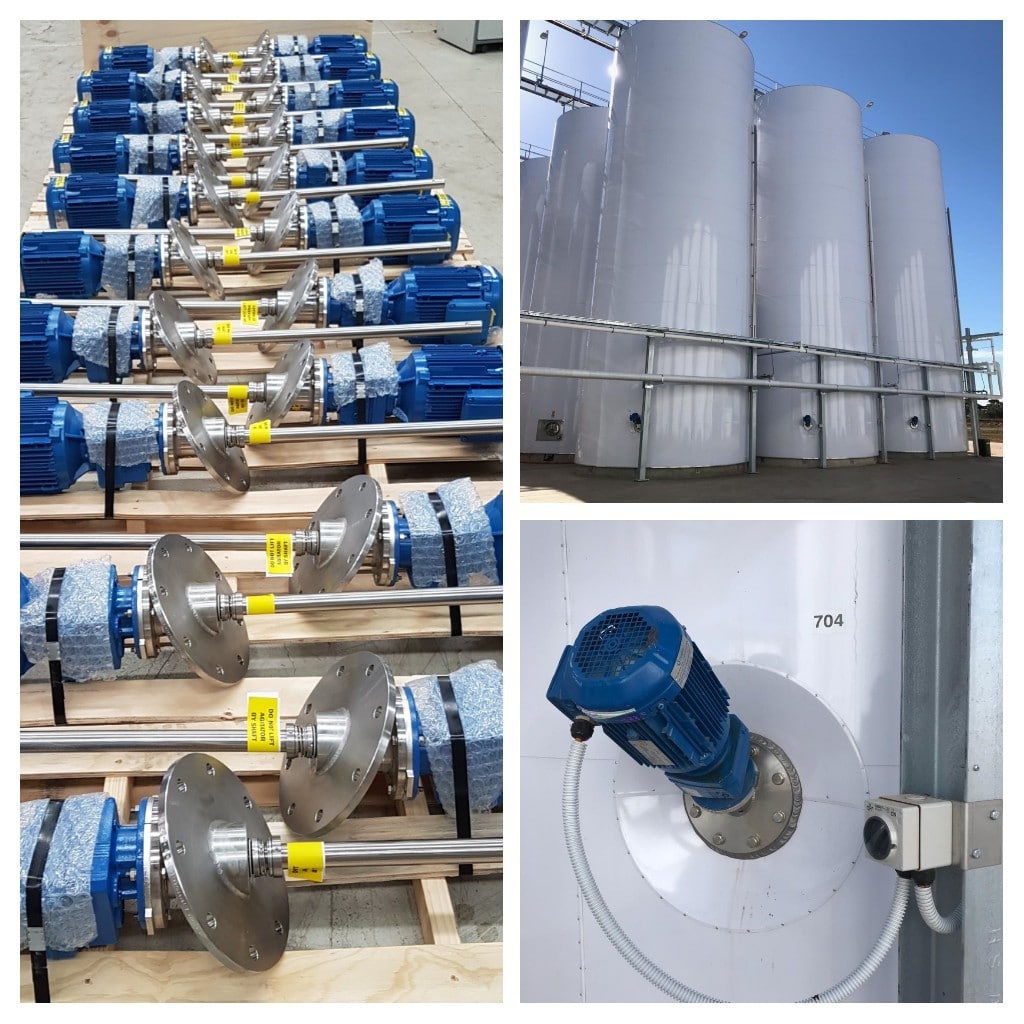

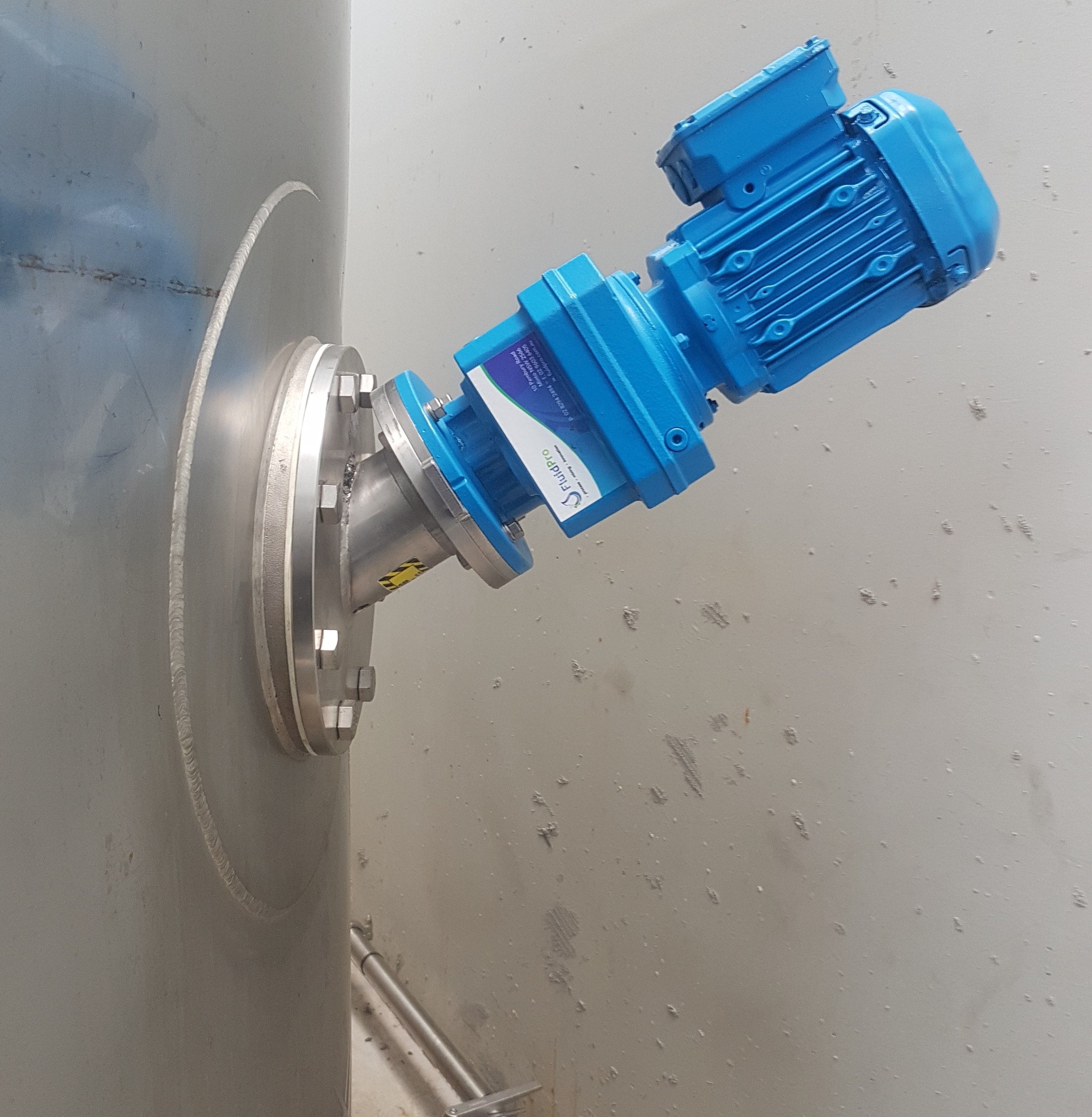

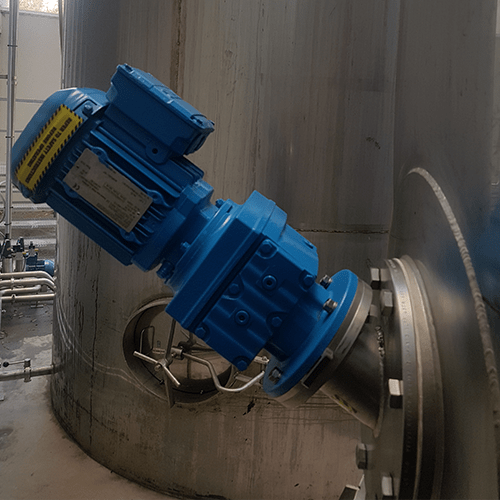

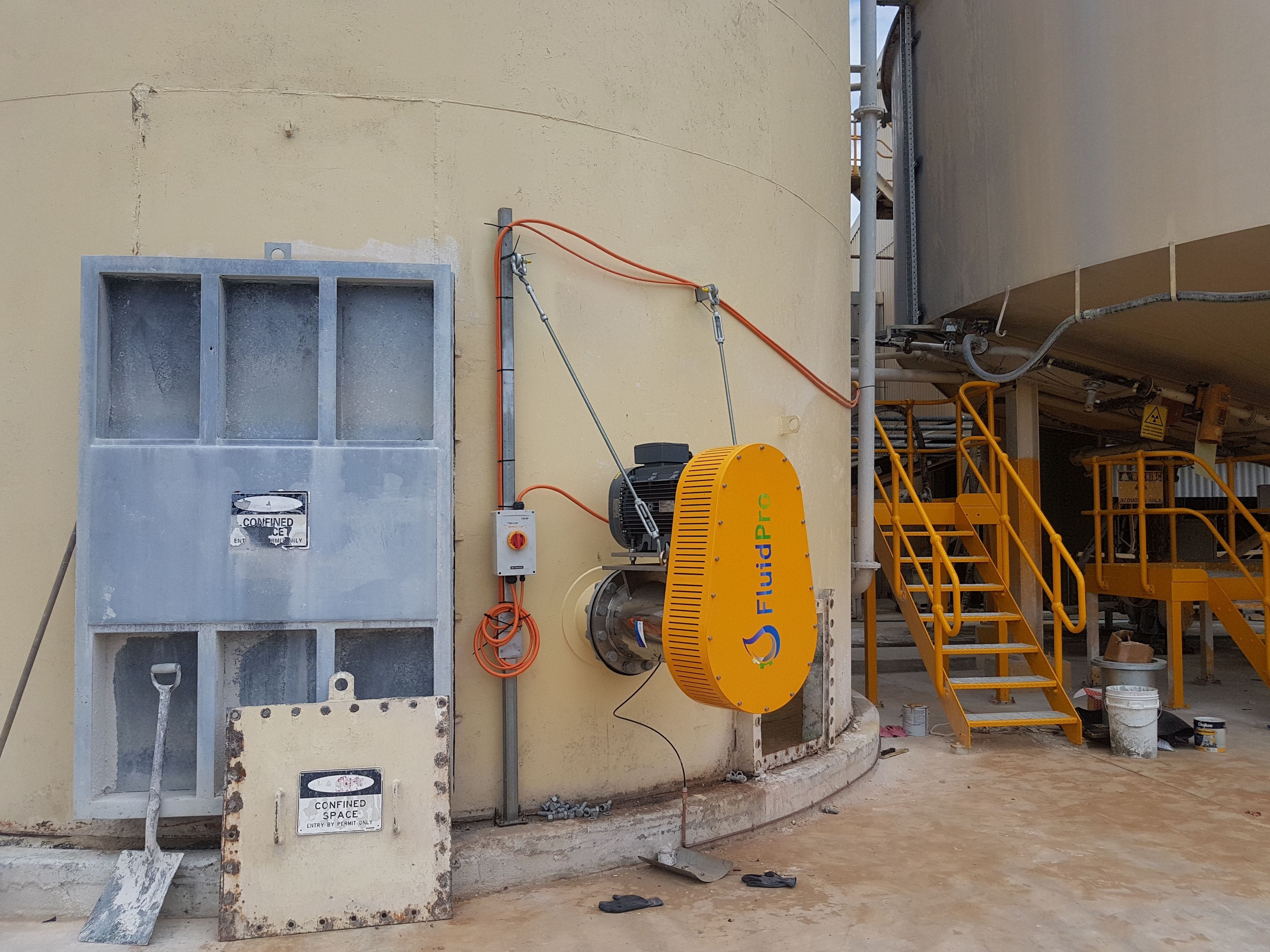

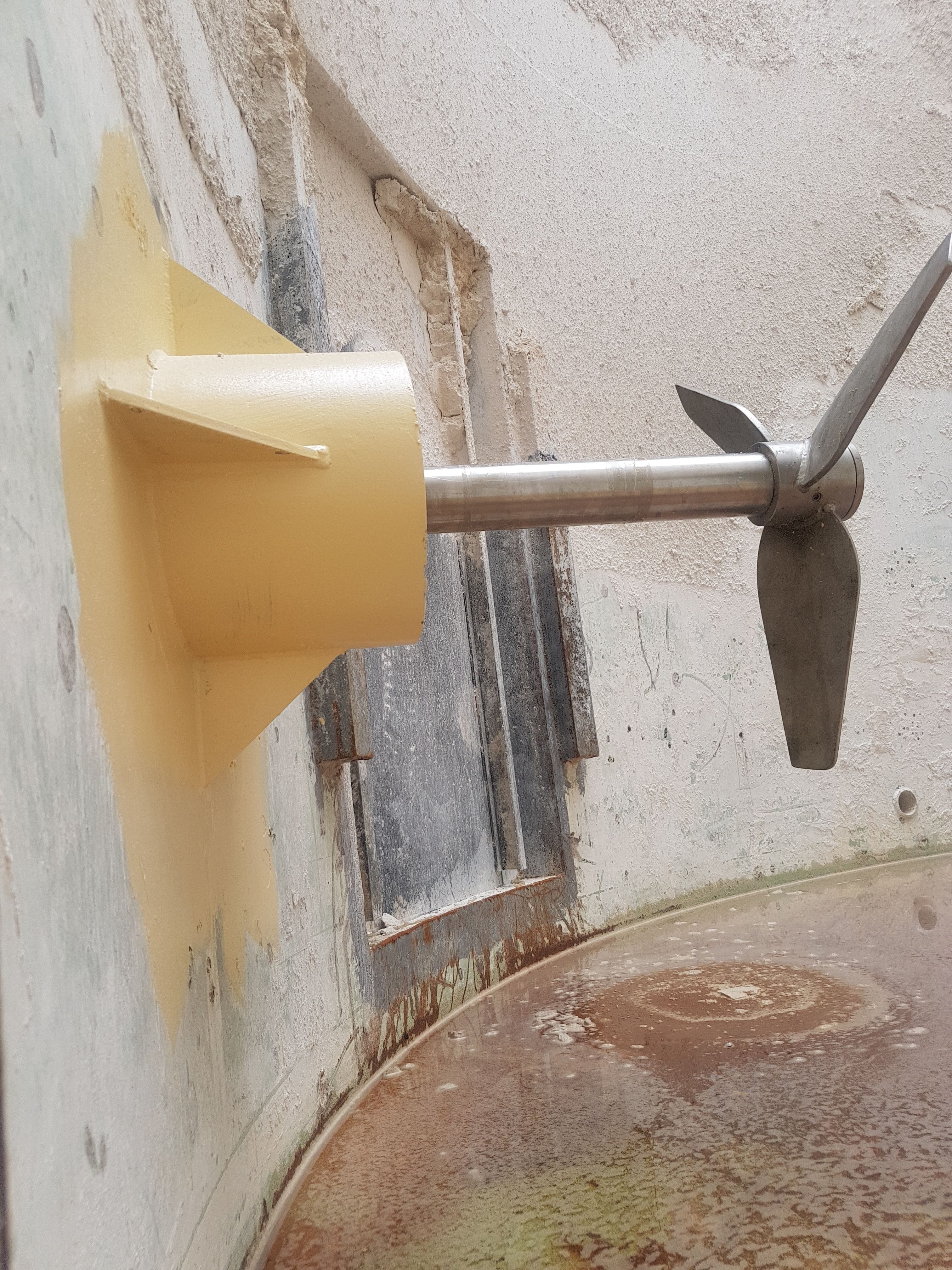

FluidPro's SE-10 Side Entry Mixers are designed for effective blending and mounting to a range of tanks across extensive industry applications including winemaking, food processing agitation and blending and chemical blending. Click to enlarge images.
